GN 476

T-Clamp mountings

Aluminium

GN 476

T-Clamp mountings
T-Clamp mountings

GN 476

T-Clamp mountings
T-Clamp mountings

Types

  • Type A: with bore
  • Type W: with bolt

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Bolt (Type W)

Stainless Steel AISI 303

Socket cap screw DIN 912

Stainless Steel AISI 304

Grub screw DIN 913 (Type A)

Stainless Steel AISI 304

Grub screw DIN 915 (Type W)

Stainless Steel AISI 304

Clamping kits GN 511

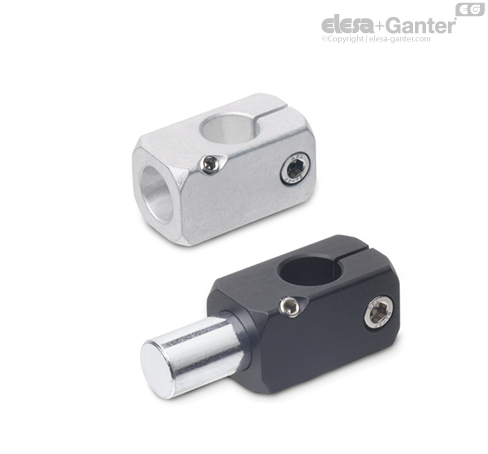

The T-Clamp mountings GN 476 (Type W) are an alternative to twistable two-way clamp mountings  GN 475  if high angular forces are required.

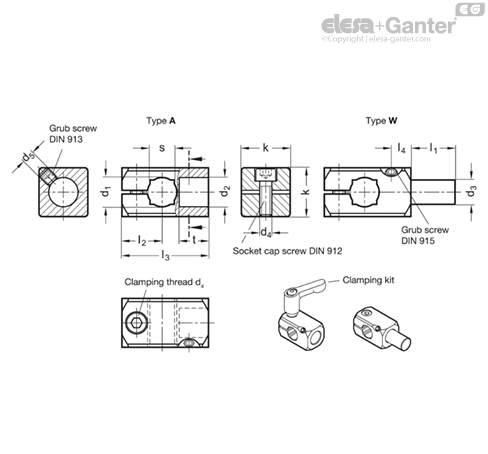

The standard version of the clamping screw at the clamping thread d4 is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping lever  GN 511  (description see table of dimensions).
