GN 473

Base plate clamp mountings

Aluminium

GN 473

Base plate clamp mountings
Base plate clamp mountings

GN 473

Base plate clamp mountings
Base plate clamp mountings

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Socket cap screws DIN 912

Stainless Steel AISI 304

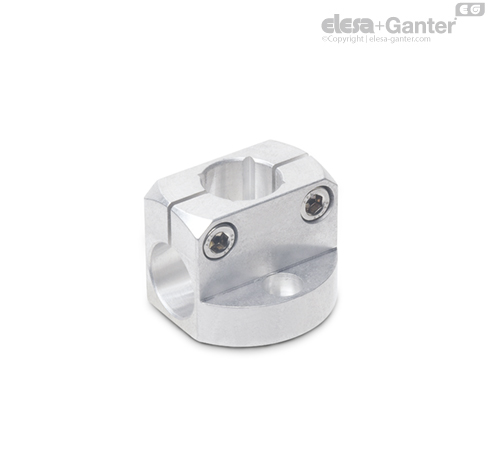

The base plate clamp mountings GN 473 have a horizontal and a vertical clamping bore. The vertical clamping bore is additionally fitted with a square.

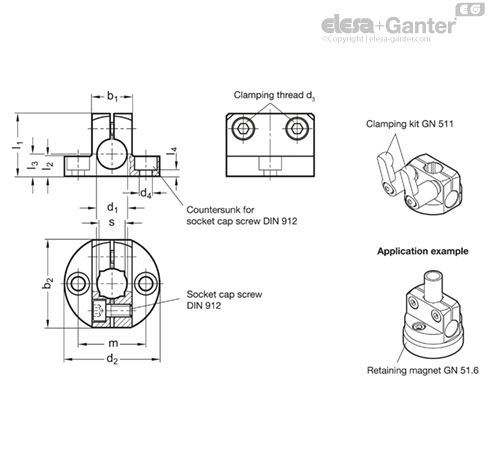

The bore distance m of the base plate mountings GN 473 is matched with the clamp mountings  GN 477  and the flanged bolts GN 480  as well as retaining magnets GN 51.6

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping lever GN 511  (see table of dimensions).
