GN 939

Panel Support Clamps

Zinc Die Casting, for Glass and Plastic Panels

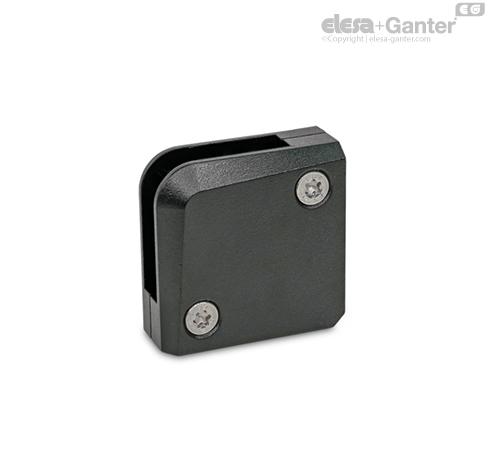

GN 939-E

Panel Support Clamps
Corner clamp

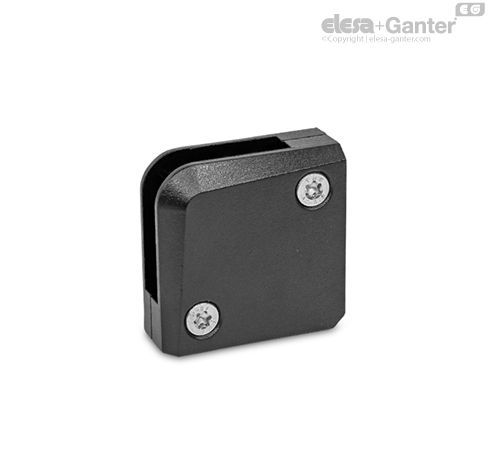

GN 939-EB

Panel Support Clamps
Corner clamp with securing pin

GN 939-F

Panel Support Clamps
Surface clamp

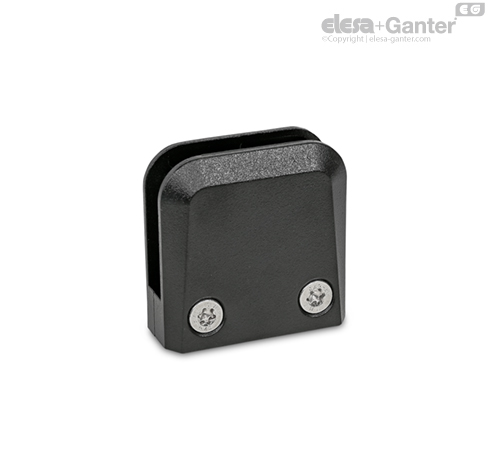

GN 939-FA

Panel Support Clamps
Surface clamp with stop plate

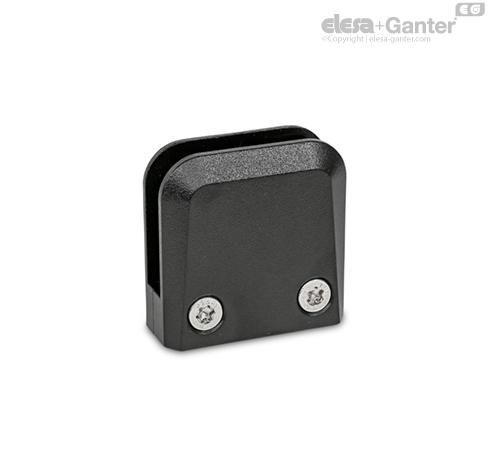

GN 939-FB

Panel Support Clamps
Surface clamp with securing pin

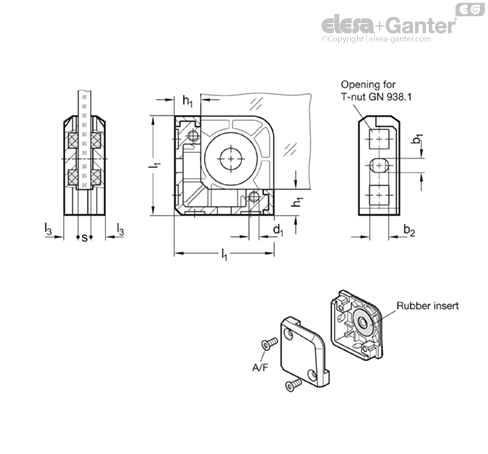

GN 939-E

Panel Support Clamps
Corner clamp

Types

  • Type E: Corner clamp
  • Type EB: Corner clamp with securing pin
  • Type F: Surface clamp
  • Type FA: Surface clamp with stop plate
  • Type FB: Surface clamp with securing pin

Zinc die casting ZD

Powder coated

  • Black, RAL 9005, textured finish SW
  • Silver, RAL 9006, textured finish SR

Clamping screws

Stainless steel AISI 304

Rubber inserts

Acrylonitrile butadiene rubber (NBR)

Stop plate (type FA)

Stainless steel AISI 316L

Securing pins (type EB and FB)

  • Stainless steel AISI 304
  • Plastic coated polyamide (PA)

Clamps GN 939 are used to fasten panels of glass, plastic or other materials. Both corner and surface clamps are available, depending on the installation situation.

The panels are clamped between the rubber inserts. In addition, positive locking by means of a securing pin or stop plate can be selected as a type.

If the clamps are used with profile systems with 8 or 10 mm slots, the T-nuts GN 938.1 are available as mounting accessories. These enable simple alignment, secure the clamps against rotation and counteract possible stresses.
