GN 487

Swivel Ball Joint Mounting Clamps

Aluminum

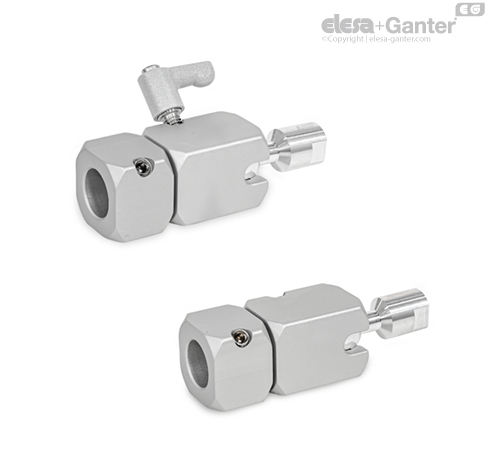

GN 487-A-I

Swivel Ball Joint Mounting Clamps
With axial bore, with internal thread

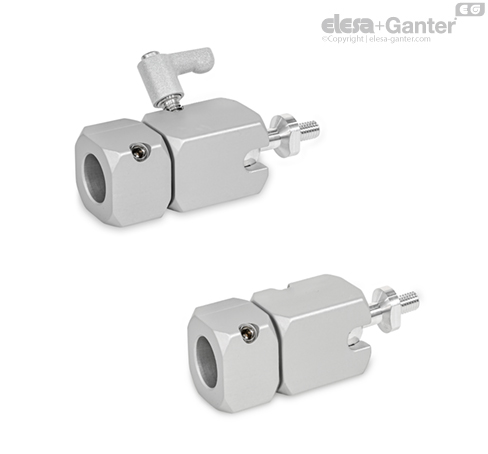

GN 487-A-S

Swivel Ball Joint Mounting Clamps
With axial bore, with external thread

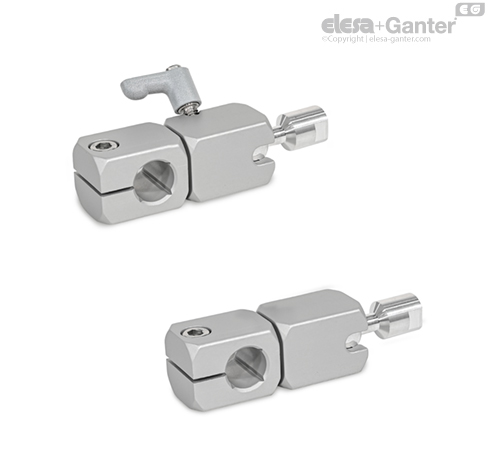

GN 487-Q-I

Swivel Ball Joint Mounting Clamps
With cross hole, with internal thread

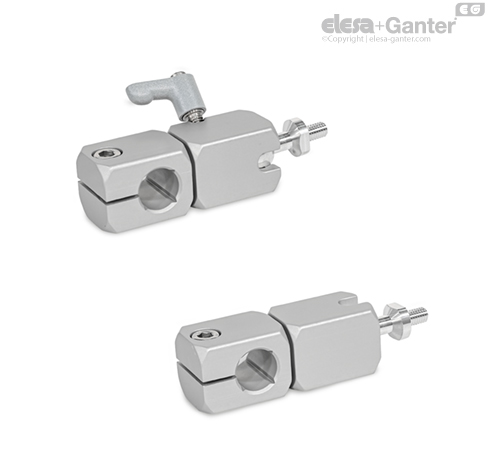

GN 487-Q-S

Swivel Ball Joint Mounting Clamps
With cross hole, with external thread

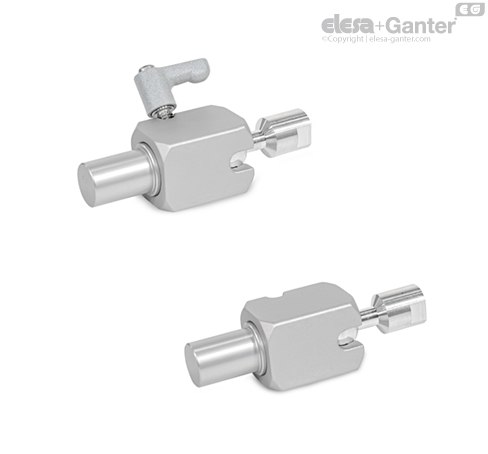

GN 487-W-I

Swivel Ball Joint Mounting Clamps
With bolt, with internal thread

GN 487-W-S

Swivel Ball Joint Mounting Clamps
With bolt, with external thread

GN 487-A-I

Swivel Ball Joint Mounting Clamps
With axial bore, with internal thread

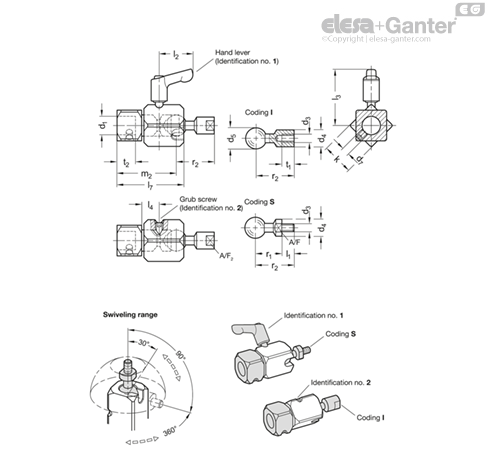

Types

  • Type Q: With cross hole
  • Type A: With axial bore
  • Type W: With bolt

Coding

  • I: Ball element with internal thread
  • S: Ball element with external thread

Identification no.

  • No. 1: Clamping with adjustable hand lever
  • No. 2: Clamping with grub screw

Body, clamping element

Aluminum

  • Anodized, natural color EL
  • Anodized, black ES

Ball element

Aluminum, plain finish

Adjustable hand lever (identification no. 1)

  • Zinc die casting

Powder coated

Silver RAL 9006, textured finish

  • Threaded insert and retaining screw

Stainless steel AISI 303

Grub screw (identification no. 2)

Stainless steel AISI 304

Socket cap screw DIN 912 (type Q)

Stainless steel AISI 304

Grub screw DIN 913 (type A)

Stainless steel AISI 304

Swivel ball joint mounting clamps GN 487 allow precise and stepless adjustment of the ball pivot within the swivel range. This makes it easy to position and adjust components such as scanners, cameras and lighting.

Thanks to the efficient clamping mechanism, even small amounts of tightening torque result in comparatively strong clamping forces on the ball. To readjust the joint, the clamping must be completely released. The hand lever (identification no. 1) can be used to easily operate the clamping mechanism without tools.

For a permanent high stop torque, the contact surfaces of the balls must be kept free of grease. Exceeding the recommended tightening torques increases the stop torque but may result in increased wear of the clamping mechanism.

  • Ball elements with other thread sizes and inch thread (as for swivel ball joints GN 784)
