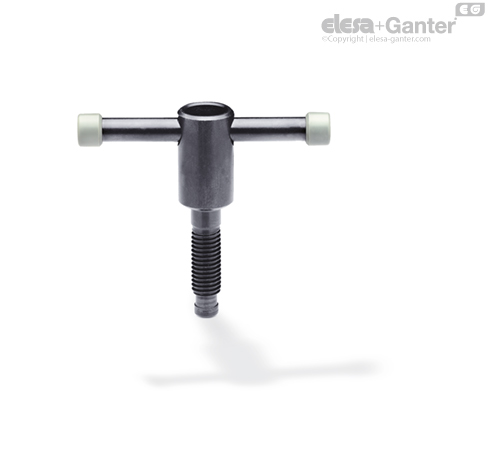

DIN 6306

Tommy screws

with movable bar

DIN 6306

Tommy screws
Tommy screws

DIN 6306

Tommy screws
Tommy screws

Types

  • Type D: without thrust pad

Steel

Tensile strength class 5.8

  • blackened
  • Thrust point hardened

Bar end caps

Plastic, grey

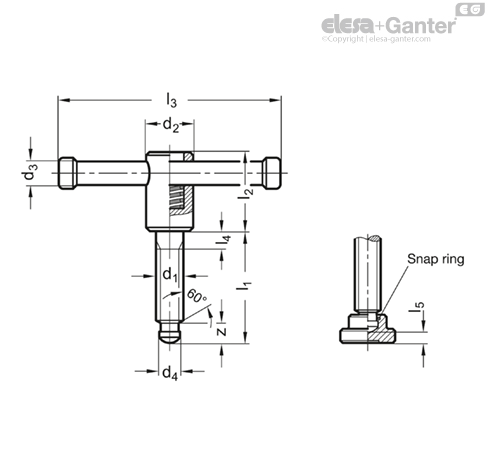

The thrust point of these screws DIN 6306 is designed to be used with or without the thrust pad for clamping.

The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.

Instead of DIN 6311 GN 6311.1 a thrust padDIN 6311 GN 6311.1can be used. In that case the tommy screw and the thrust pad have to be ordered separately

The movable bar of the tommy screw DIN 6306 is held in any position by the pressure spring.

The end caps are pressed on to the bar and thus limit the bar travel, they can also be supplied separately should the bar be plated first. The official DIN standard sheets provides for steel rings at this point.
