GN 303.1

Adjustable hand levers

with push button/ Zinc die casting, Bushing / Threaded bolt Stainless Steel

GN 303.1

Adjustable hand levers
with threaded insert

GN-303.1

Adjustable hand levers
with threaded stud

GN 303.1

Adjustable hand levers
with threaded insert

Handle

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

Push button

Plastic

black, RAL 9005 S

orange, RAL 2004 O

grey, RAL 7035 G

Version with bushing

Stainless Steel AISI 303

Version with threaded stud

Stainless Steel AISI 303

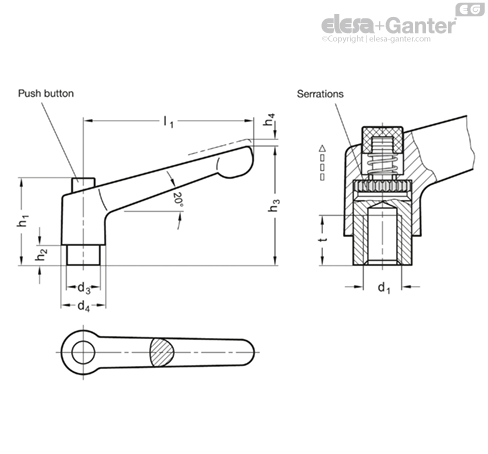

Adjustable hand levers GN 303.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be dis-engaged.

The push button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.

  • Handle in colours of GN 300
