GN 302.2

Flat Adjustable Hand Levers

Zinc Die Casting, Bushing / Threaded Stud Steel Zinc Plated

GN 302.2

Flat Adjustable Hand Levers
Bushing Steel Zinc Plated

GN-302.2

Flat Adjustable Hand Levers
Threaded Stud Steel Zinc Plated

GN 302.2

Flat Adjustable Hand Levers
Bushing Steel Zinc Plated

Handle

Zinc die casting

Powder coated

Black, RAL 9005, textured finish SW

Orange, RAL 2004, textured finish OS

Red, RAL 3000, textured finish RS

Silver, RAL 9006, textured finish SR

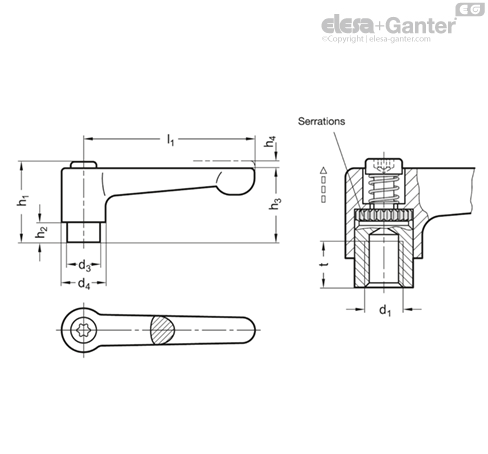

Version with bushing

Bushing and retaining screw

Steel zinc plated, blue passivated

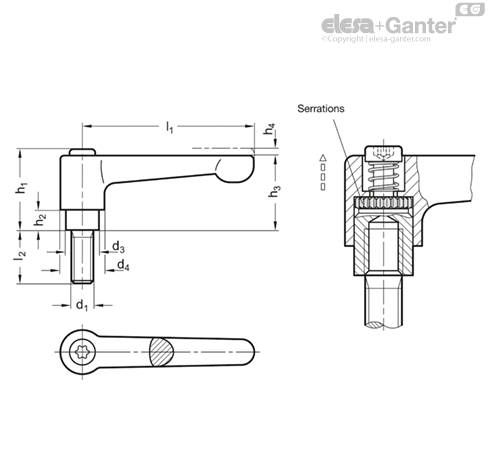

Version with threaded stud

Threaded stud and retaining screw

Steel zinc plated, blue passivated

Adjustable hand levers GN 302.2 have a straight lever, not inclined, being parallel to the clamping space.

Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
