GN 300

Adjustable hand levers

Zinc die casting, Bushing / Threaded bolt Steel, blackened

GN 300

Adjustable hand levers
with threaded insert

GN-300

Adjustable hand levers
with threaded stud

GN 300

Adjustable hand levers
with threaded insert

Handle

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

black, RAL 9011, silk finish SZ

orange, RAL 2004, textured finish OS

red, RAL 3000, textured finish RS

silver, RAL 9006, textured finish SR

chrome-plated CR

uncoated, slide grinded RH

Version with bushing

Threaded insert and retaining screw

Steel, blackened

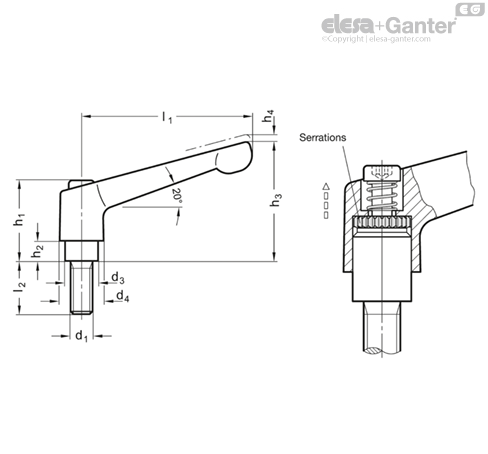

Version with threaded stud

Threaded stud and retaining screw

Steel, blackened

Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
