GN 126.1

Adjustable flat tension levers

Zinc die casting, Bushing / Threaded stud Stainless Steel

GN 126.1

Adjustable flat tension levers
with threaded insert

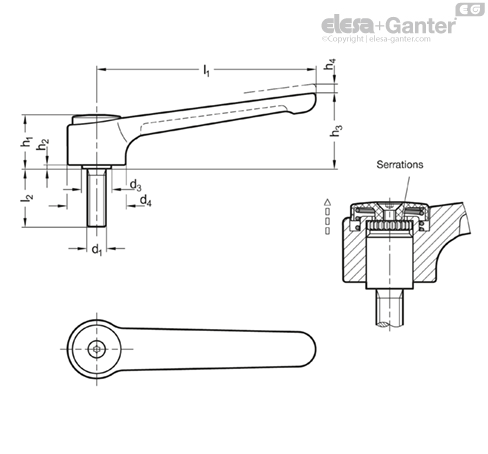

GN-126.1

Adjustable flat tension levers
with threaded stud

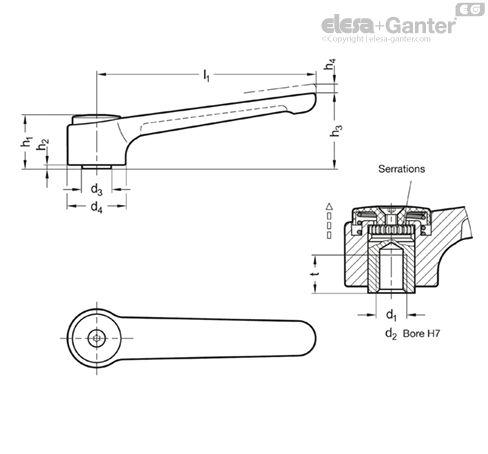

GN 126.1

Adjustable flat tension levers
with threaded insert

Handle

Zinc die casting

Plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Hub cover

Plastic

  • black for SW
  • light gray for SR

Countersunk screw

Stainless Steel

  • chemically blackened for SW
  • blank for SR

Threaded bushing / bore bushing

Stainless Steel AISI 303

Adjustable flat tension lever GN 126.1 is characterized by their low height and the timelessly elegant design.

They are ideal whenever swiveling in a confined space is required or the lever is to be clamped in a particular position. The threaded insert / bored bushing is moveably attached to the handle with serrations.

Pulling the lever disengages the serrations, allowing it to be swiveled to the ideal clamping position. On “releasing” the handle, the serrations reengage automatically.
