VTT-RC

Lobe knobs with solid section

with elastic fork, technopolymer

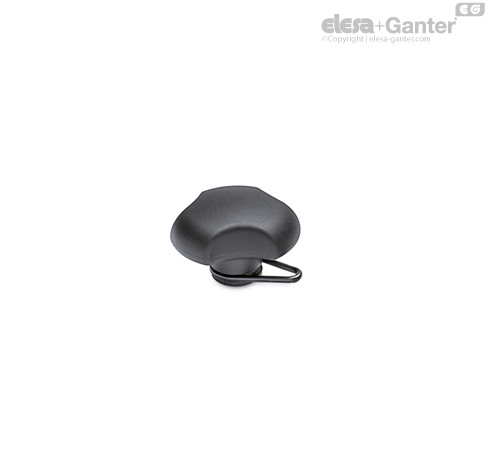

VTT-B-RC

Lobe knobs with solid section
Brass boss, threaded hole

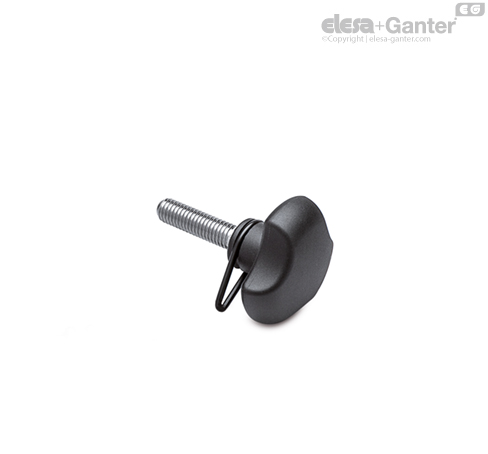

VTT-p-RC

Lobe knobs with solid section
Zinc-plated steel threaded stud

VTT-SST-p-RC

Lobe knobs with solid section
AISI 304 stainless steel threaded stud

VTT-SST-RC

Lobe knobs with solid section
AISI 304 stainless steel boss, threaded hole

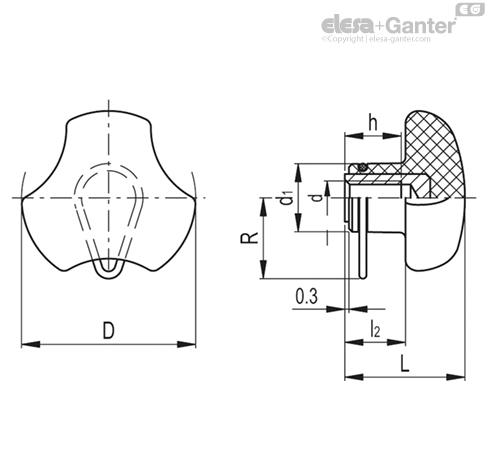

VTT-B-RC

Lobe knobs with solid section
Brass boss, threaded hole

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Elastic fork in acetal based technopolymer (POM), black colour.

Standard executions

  • VTT-B-RC: brass boss, threaded blind hole.
  • VTT-SST-RC: AISI 304 stainless steel boss, threaded blind hole.
  • VTT-p-RC: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
  • VTT-SST-p-RC: AISI 304 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Features and applications

Suitable where it is necessary to prevent the loss of the knob.

The elastic fork, housed in the groove of the knob can turn freely.

The three-lobe shape with large recesses is particularly ergonomic also for smaller knobs, ensuring an effective grip even with work gloves.

The design without rear cavities, generally adopted for reducing thickness, prevents unhealthy residues from depositing, ensuring easy cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.

Accessories on request

  • CT-Stechnopolymer and stainless steel ball chains.
  • GN 111stainless steel and brass ball chains.
  • CV-Tpolyethylene and stainless steel retaining cables.
  • GN 111.2 stainless steel retaining cables.
  • GN 111.4 polyurethane and stainless steel spiral retaining cables.
