GN 3663

Torque Limiting Knurled Knobs / Screws

GN 3663

Torque Limiting Knurled Knobs / Screws
Torque knurled knobs

GN-3663

Torque Limiting Knurled Knobs / Screws
Torque knurled knob screws

GN 3663

Torque Limiting Knurled Knobs / Screws
Torque knurled knobs

Knob

Aluminium

black, anodized

Torque mechanism

Steel, hardened

Other parts

Steel, blackened

Cover cap

Plastic light grey

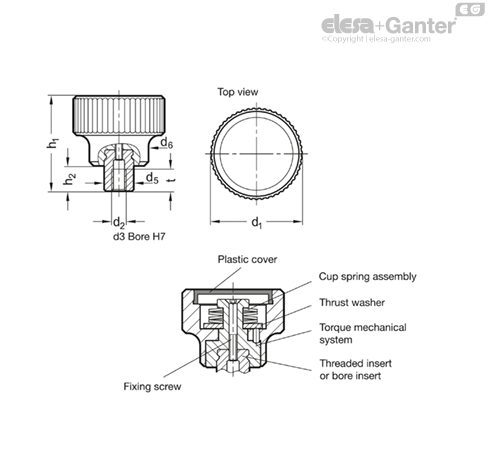

Torque knurled knobs / Torque knurled knob screws GN 3663 are used when the manually applied torque is to be limited.

When turned clockwise, the torque mechanical system of the knurled knob triggers an „over-engagement“ as soon as the specified torque is reached. When turning anti-clockwise, the mechanical system locks such that the torque is not limited. When tightening, this will ensure that the maximum permissible torque is not exceeded. On the other hand, the torque necessary for releasing will always be transferred reliably.

After removing the cover and loosening the countersunk screw, the thread or bore insert can be dismantled.

  • Other dimensions for inserts with bore, thread and threaded stud inserts analog GN 300
  • Other dimenstions with special threaded studs analog GN 306
  • Other torques
  • Torques limiting turning anti-clockwise or turning anti-clockwise and clockwise
