DIN 464

Knurled screws

Steel / Stainless Steel, High Type

DIN 464

Knurled screws
Steel

DIN 464-NI

Knurled screws
Stainless Steel

DIN 464-SST

Knurled screws
Stainless Steel

DIN 464-ST

Knurled screws
Steel

DIN 464-ZB

Knurled screws
Zinc plated

DIN 464

Knurled screws
Steel

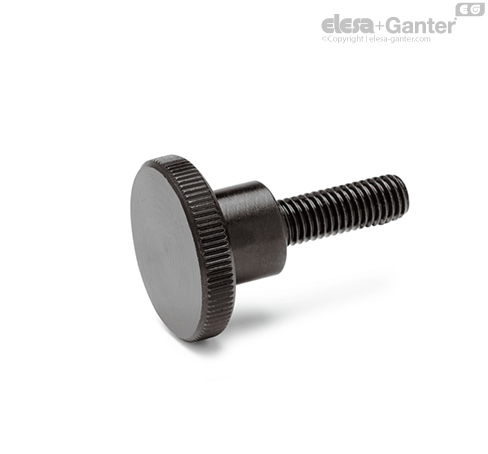

Version in Steel

  • Tensile strength class 5
  • visible face fine turned
  • blackened
  • zinc plated, blue passivated ZB

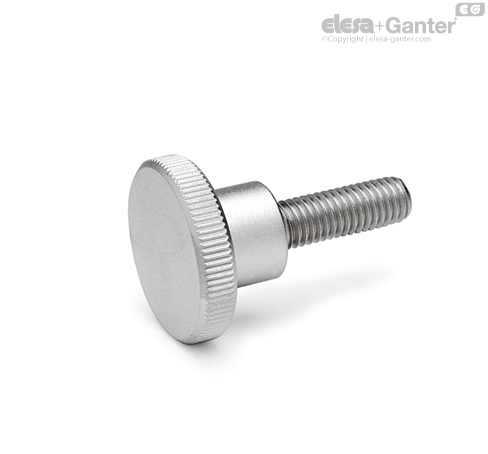

Version in Stainless Steel AISI 303 NI

  • matte shot-blasted

Knurled screws DIN 464 are turned entirely from a single piece. The thread of the screw generally extends up to the shoulder and ends in a runout without recess.

They are suitable for universal use and can be quickly tightened and loosened without tools.
