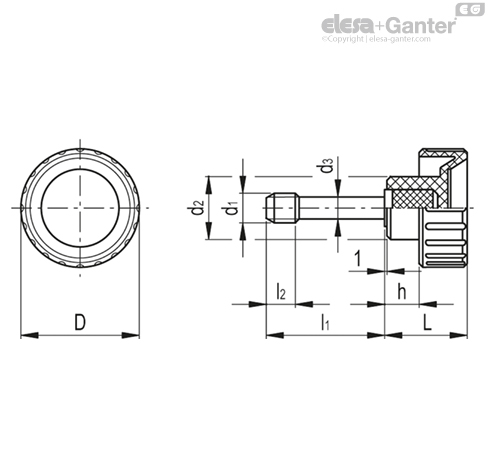

BT-HP

Retained fluted knobs

Technopolymer

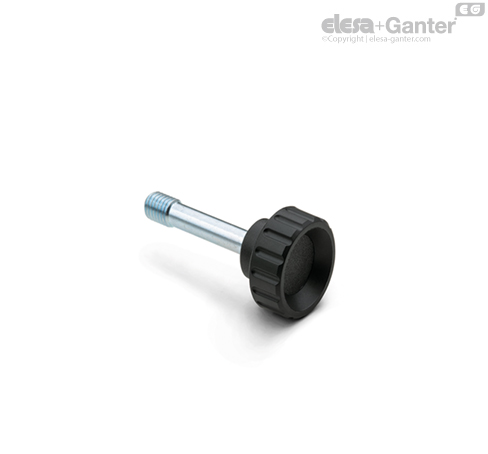

BT-HP-p

Retained fluted knobs
Zinc-plated steel threaded stud

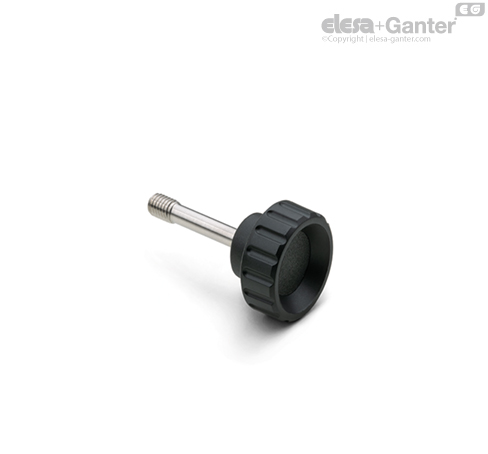

BT-HP-SST-p

Retained fluted knobs
AISI 304 stainless steel threaded stud

BT-HP-p

Retained fluted knobs
Zinc-plated steel threaded stud

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • BT-HP-p: polished zinc-plated steel threaded stud, chamfered flat end UNI EN ISO 4753 : 2012 (see Technical data).
  • BT-HP-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end UNI EN ISO 4753 : 2012 (see Technical data).

Features and applications

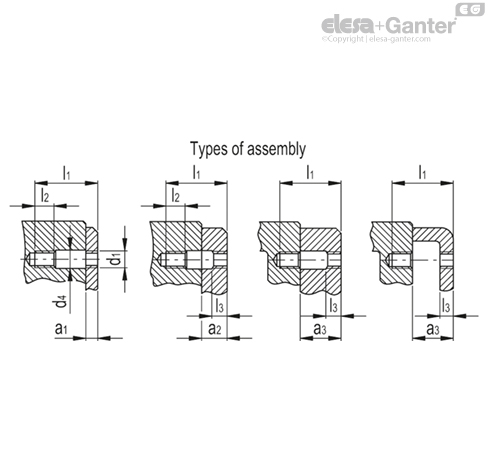

The retained fluted knobs are used to secure blanking plates, covers, or other items without the risk of loss.

This is made possible by the non-threaded part of the stem, which allows the knob to remain anchored (retained) to the machinery.
