RE.C7-C
Castors for general use
Vulcanised rubber coating

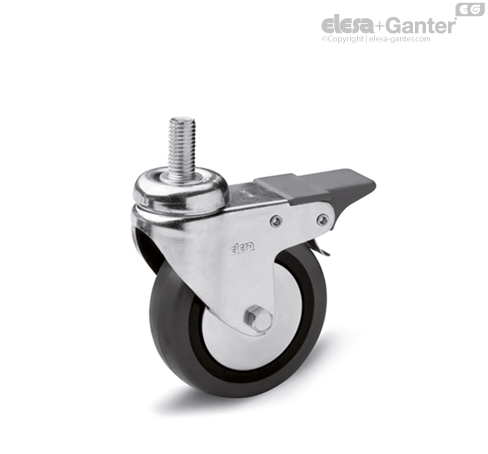

RE.C7-CBF
Castors for general use
Turning plate bracket and threaded centre pin, with brake

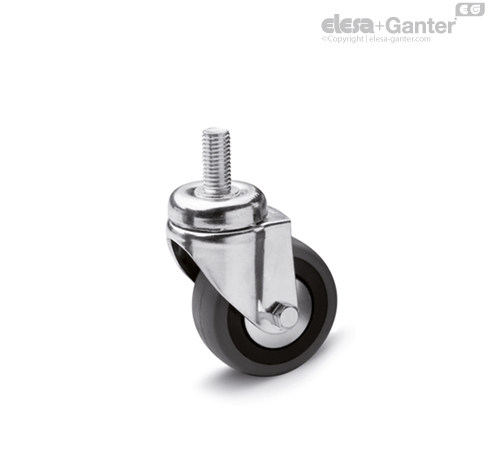

RE.C7-CBL
Castors for general use
Turning plate bracket and threaded centre pin, without brake

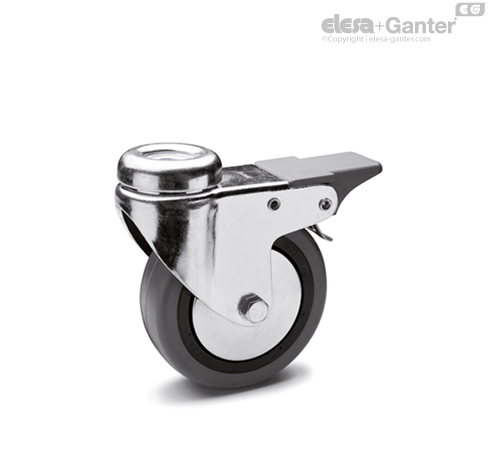

RE.C7-FBF
Castors for general use
Turning plate bracket and centre pass-through hole, with brake

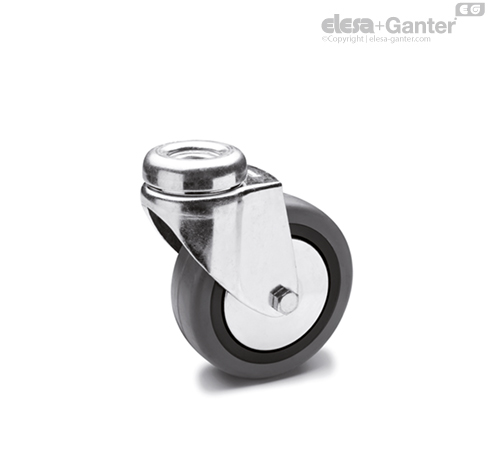

RE.C7-FBL
Castors for general use
Turning plate bracket and centre pass-through hole, without brake

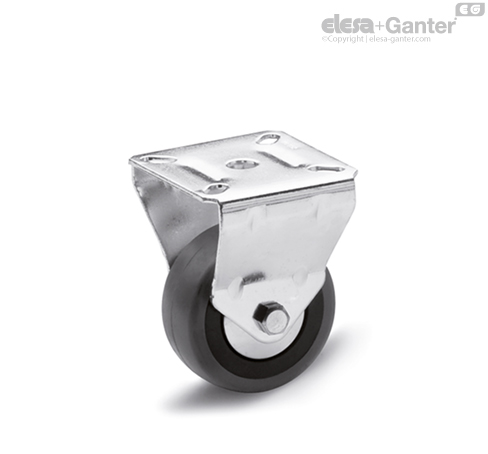

RE.C7-PBL
Castors for general use
Fixed plate bracket, without brake

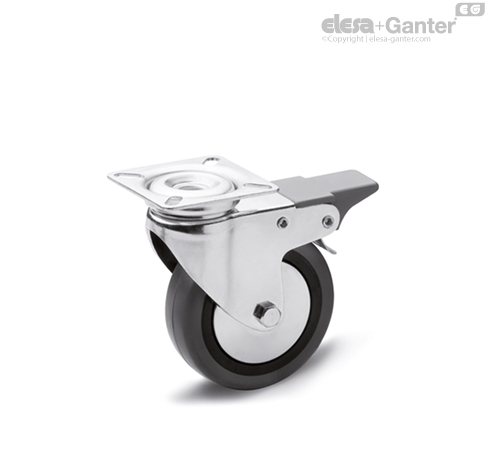

RE.C7-SBF
Castors for general use
Turning plate bracket, with brake

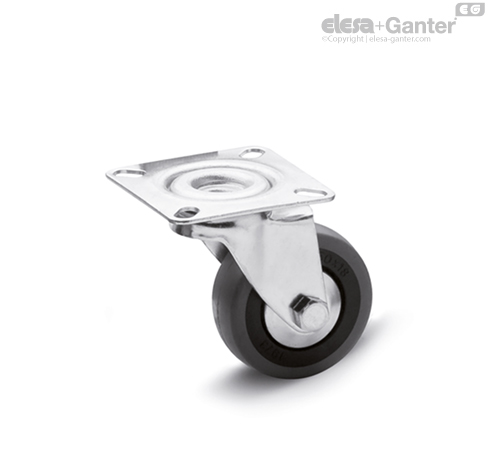

RE.C7-SBL
Castors for general use
Turning plate bracket, without brake

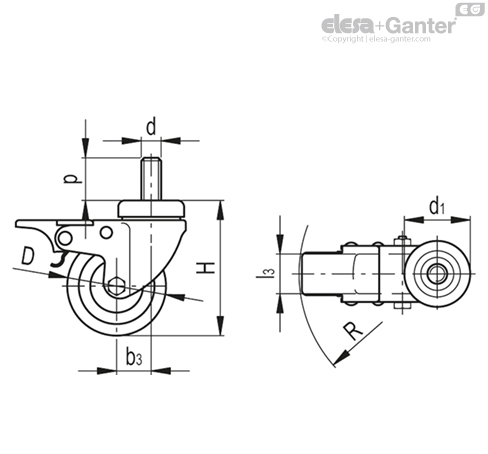

RE.C7-CBF
Castors for general use
Turning plate bracket and threaded centre pin, with brake
Covering
Grey anti-trace rubber.
Wheel centre body
Polypropylene-based (PP) technopolymer, with polyamide thread guards (D = 40 mm) or with metal thread guards (D = 50, 60, 80 mm).
Rolling action
Hub with pass-through hole.
Fixed plate bracket
Electrolytically zinc-plated steel sheet bracket.
Turning plate bracket
Electrolytically zinc-plated steel sheet bracket.
The presence of a double ball race and direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.
Front-actuated brake
Total brake that locks the wheel and bracket rotation. The optimised dimensions and the retractible pedal ensure minimal space occupied and maximum actuation ease.
Standard executions
- PBL: fixed plate bracket, without brake.
- SBL: turning plate bracket, without brake.
- SBF: turning plate bracket, with brake.
- CBL: turning plate bracket and threaded centre pin, without brake.
- CBF: turning plate bracket and threaded centre pin, with brake.
- FBL: turning plate bracket and centre pass-through hole, without brake.
- FBF: turning plate bracket and centre pass-through hole, with brake.
