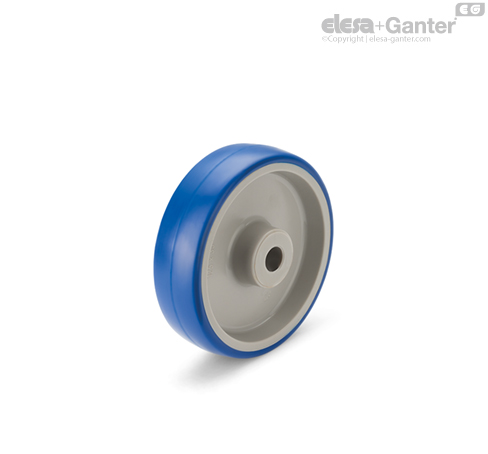

Injected polyurethane, hardness 85 Shore A.
Polyamide based (PA) technopolymer.
Hub with pass-through hole.
Excellent rolling resistance, elasticity, and noiselessness features, good wear and tearing resistance.
Excellent capacity to overcome obstacles.
For selection parameters see Technical data
RE.F1 wheels are also supplied with steel sheet brackets RE.F1-N
Suitable for use in environments with the presence of atmospheric agents, alcohols and glycols, weak organic and mineral acids, water and saturated vapour.
The diagram shows the force to be applied to a wheel to keep it moving at the constant speed of 4 km/h, according to the applied load.
The intersection point with a 40N value is the maximum transportable load with a manually actuated 4-wheel trolley; in fact, 160N = 40N x 4 wheels is the maximum force that may be supported by the operator according to the regulations in force regarding work safety.
If operating temperatures in an application differ from the standard range of values, please see the technical specifications to determine the capacity variation.
