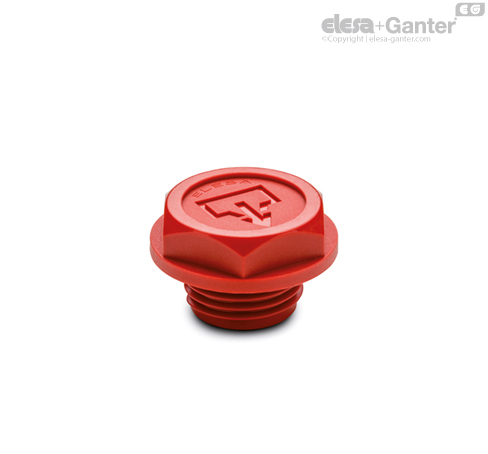

TSR.

Oil drain plugs

Technopolymer up to 100°C

TSR.

Oil drain plugs
Oil drain plugs

TSR.

Oil drain plugs
Oil drain plugs

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, red colour similar to RAL 3000, matte finish.

Packing ring

NBR synthetic rubber O-Ring.

In addition to guaranteeing the OR-ring retention, the seat for the housing allows an optimal seal even with minimum tightening torques.

Maximum continuous working temperature

100°C.

Graphic symbol "drain"

According to DIN regulations.

Technical data

In laboratory tests carried out with mineral oil type CB68 (according to ISO 3498) at 23°C for a limited period of time, the values of pressure resistance were much higher than 100 bar.

In any case, we suggest to check the suitability of the product with regard to the fluid nature, operating temperature and application type under the actual working conditions.

Accessories on request

TSR. oil fill plugs are are suitable for mounting aluminium plates with graphic symbols type MH.-.
