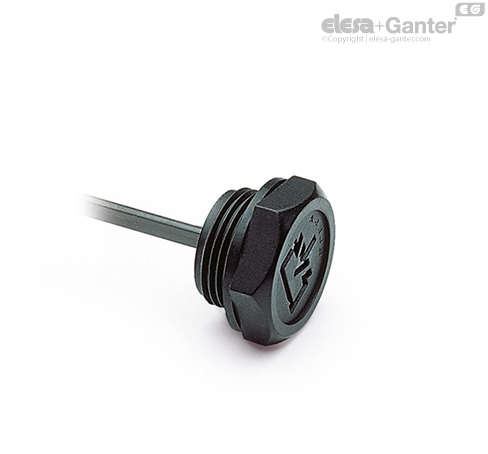

TCD+a

Oil fill plugs

with flat dipstick, technopolymer up to 100°C

TCD+a

Oil fill plugs
Oil fill plugs

TCD+a

Oil fill plugs
Oil fill plugs

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Packing ring

NBR synthetic rubber.

Flat dipstick

Flat section phosphatised steel.

On request and for sufficient quantities dipstick can be supplied in different lengths and/or complete with MAX-MIN level lines.

Standard executions

  • TCD+a: without side hole.
  • TCDF+a: with side breather hole.

Maximum continuous working temperature

100°C.

Graphic symbol "fill"

According to DIN regulations.

Technical data

The tightening torque indicated in the table guarantees an optimal tightness, keeping the packing ring in the correct position.

Accessories

TCD+a oil fill plugs are suitable for mounting aluminium plates with graphic symbols type MH.-.
