HVF.
Visual flow indicators
Technopolymer ends
HVF-SST (G1/4 - G3/8 - G1/2)
Visual flow indicators
AISI 316 stainless steel bosses

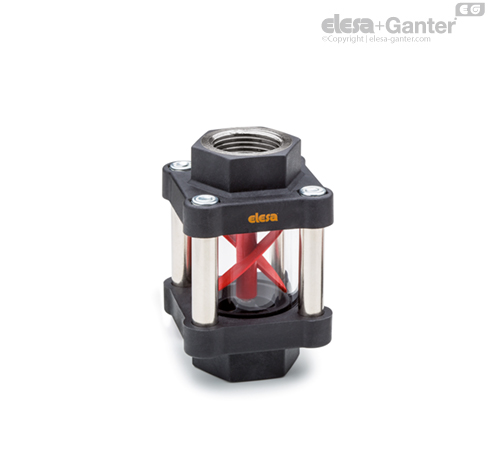

HVF-SST (G3/4 - G1)
Visual flow indicators
AISI 316 stainless steel bosses

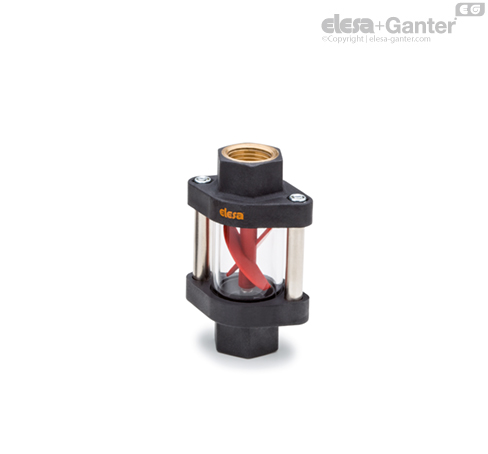

HVF. (G1/4 - G3/8 - G1/2)
Visual flow indicators
Brass bosses

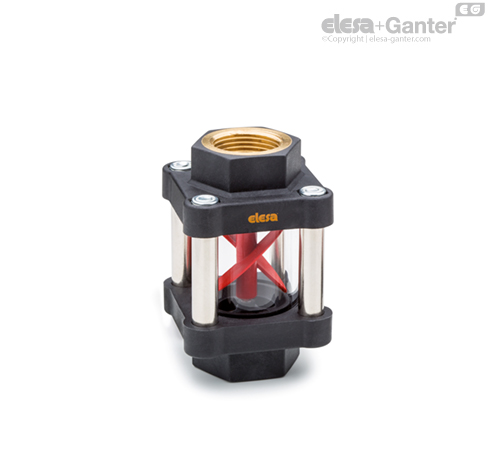

HVF. (G3/4 - G1)
Visual flow indicators
Brass bosses
HVF. (NPT 1/4 - 3/8 - 1/2)
Visual flow indicators
Brass bosses
HVF. (NPT 3/4 - 1)
Visual flow indicators
Brass bosses
HVF-SST (G1/4 - G3/8 - G1/2)
Visual flow indicators
AISI 316 stainless steel bosses
Ends
Polypropylene based (PP) technopolymer, black colour, matte finish.
Axis and rotor propeller
Polypropylene based (PP) technopolymer, red colour.
Tubular window
Borosilicate glass, high-resistance, also suitable for use with glycol-based solutions.
Maximum visibility of the flow from all angles.
Tie rods
AISI 316L stainless steel.
Standard executions
Cylindrical gas threading according to UNI ISO 228/1 or conical gas NPT - ANSI-ASME B1-20.
- HVF.: brass bosses and NBR synthetic rubber gasket.
- HVF-SST: AISI 316 stainless steel bosses and packing ring in VITON®**.
Maximum continuous working temperature
100° C.
