GN 743.2

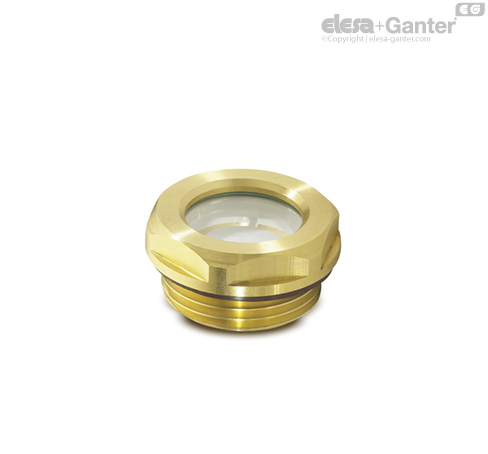

Oil level sight glasses

Brass / natural glass, resistant up to 100 °C

GN 743.2

Oil level sight glasses
Oil level sight glasses

GN 743.2

Oil level sight glasses
Oil level sight glasses


  • Type A: with contrast screen
  • Type B: without contrast screen




Contrast screen

Technopolymer (Polysulfon)

  • temperature resistant up to 100 °C
  • Sight glass Float-glass
  • Sealing ring rubber NBR (Perbunan)

Oil level sight glasses GN 743.2 offer genuine glass of high stability and scratch proof. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.

Oil level sight glasses GN 743.2 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.

Assembly instruction:

For mounting on walls of less than 4 mm thickness please use a fixing nut  GH..

  • Fixing nut GH.

  • EPDM seal
