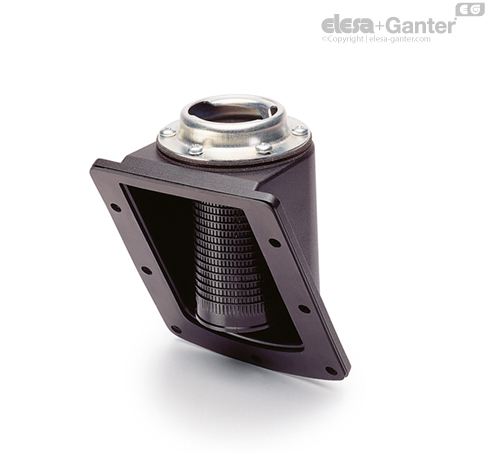

Side mount

for bayonet cap, technopolymer up to 90°C


Side mount
Side mount


Side mount
Side mount


  • Mount: polyamide based (PA) technopolymer with NBR synthetic rubber packing ring.
  • Flange: zinc-plated steel, bayonet with flat gasket in cork impregnated MGS based rubber.
  • Basket: polypropylene based (PP) technopolymer.


Black, matte finish.


Flange and basket are fitted to the mount by means of six zinc-plated steel self-tapping screws TC-N10 (Ø 4.8x19) UNI 6951-DIN 7971, supplied.

The mount is fitted to the reservoir by means of seven M6 screws and relative washers (not supplied).

Maximum recommended tightening torque: 8 Nm.


The breather cap to be coupled to the flange is not included in the supply and has to be ordered sepatately.

Depending on the customer's requirements, can be used breather caps type SFN.-,SFP.-,SFW.-.

Special executions on request

Mount with bayonet flange without basket (PLRB).
