GN 883

Breather valves

Brass, 100°C

GN 883

Breather valves
Breather valves

GN 883

Breather valves
Breather valves

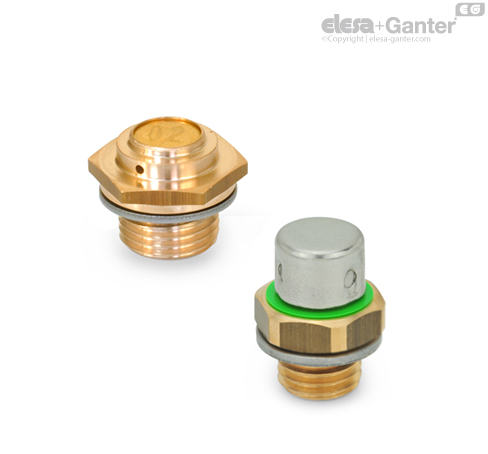

  • Type A: Low design
  • Type B: High design, with stainless steel cap

Valve body

Brass MS


Steel AISI 5210


Stainless Steel AISI 301

Seal DIN 7603 A

Soft iron 1.0338

(for d1 = M10 x 1:PA6)

Breather cap (Type B)

Stainless steel AISI 304

Temperature resistant from -30 °C to +200 °C

Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive inside container pressure. They also feature highly compact dimensions.

A coding (Type A) or a color ring (Type B) in yellow (20 - 80 mbar) or green (160 - 240 mbar) indicates the different opening pressure ratings.

The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve acting to one side. The installation position is vertical to the top.
