GN 51.7

Magnets

with ball knob / with key ring, with rubber jacket

GN 51.7

Magnets
Magnets

GN 51.7

Magnets
Magnets

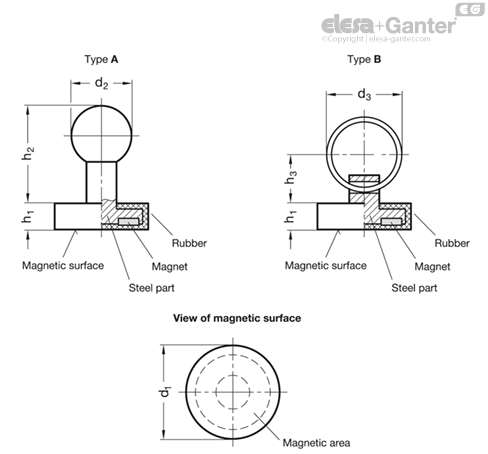

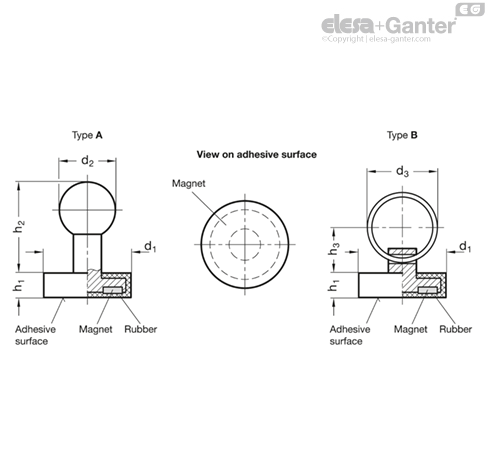

Types

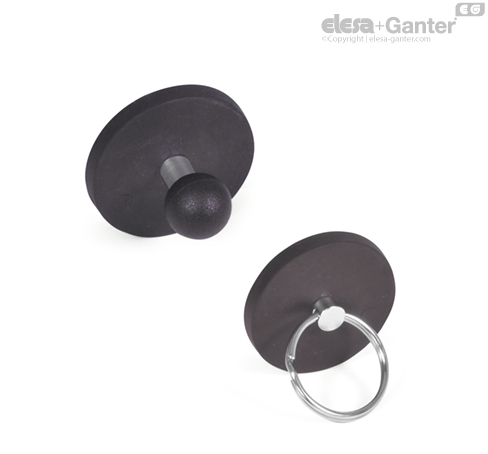

  • Type A: with knob
  • Type B: with key ring

Steel part

Nickel plated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

Temperature resistant up to 80 °C

Rubber jacket

Elastomer (TPE)

80 shore A ≈

Black

Ball knob

Plastic

Technopolymer (Polyamide PA)

Black, matte

Key ring

Steel, nickel plated

Magnets GN 51.7 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
