GN 638

Ball jointed leveling feet GN 638 are used for installing and leveling devices or for pressing and clamping.

The plastic thrust pad prevents damage to sensitive surfaces. The stainless steel versions NI and NV can also be used in more aggressive environments thanks to the materials used.

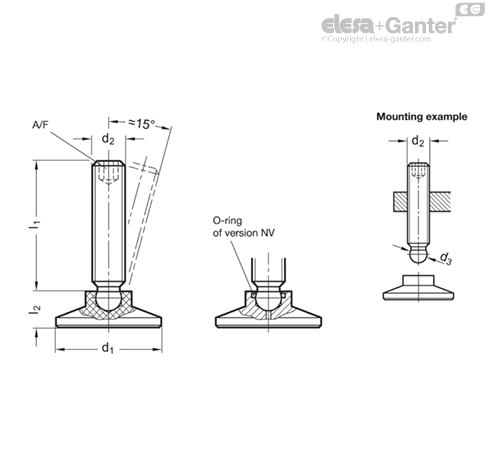

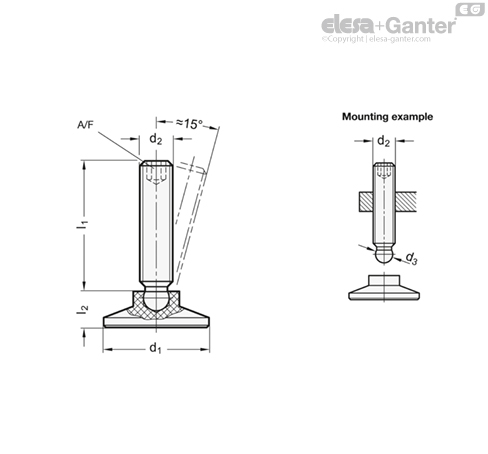

Together with the thrust pad, the ball thrust point forms a ball joint that adapts to mounting surfaces that are uneven or not perpendicular to the screw axis. It also prevents the clamping surface from rotating when the thrust pad is in contact to the clamping surface.

The ball jointed leveling feet are supplied unassembled. The ball thrust point of the threaded stud can be easily pressed into the thrust pad and removed again if needed. The ball diameter d₃ is smaller than the core diameter of the thread, with the eff ect that the threaded stud can be screwed in on the ball side.

The indicated static load serves as a guide value; a corresponding safety factor must be additionally taken into account depending on the application.
