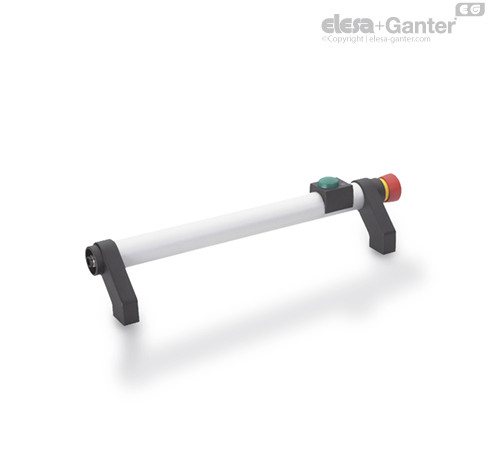

GN 332

Tubular handles

with power switching function

GN 332

Tubular handles
Tubular handles

GN 332-T0-2

Tubular handles
Without button, with emergency stop

GN 332-T1-1

Tubular handles
With 1 button, without emergency stop

GN 332-T1-2

Tubular handles
With 1 button, with emergency stop

GN 332-T2-1

Tubular handles
With 2 buttons, without emergency stop

GN 332-T2-2

Tubular handles
With 2 buttons, with emergency stop

GN 332

Tubular handles
Tubular handles

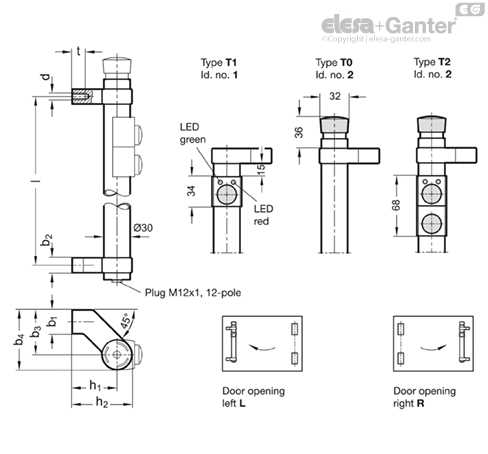

Types
  • Type T0: Without button
  • Type T1: With 1 button
  • Type T2: With 2 buttons
Identification no.
  • Version 1: Without emergency stop
  • Version 2: With emergency stop
Door opening
  • Version L: Left
  • Version R: Right

Handle tube

Aluminum, wall thickness 1,5 mm

Powder coated

Black, RAL 9005, textured finish SW

Anodized, natural color EL

Handle legs

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Cover

(for identification no. 1 instead of emergency stop)

Plastic, light gray

Operating temperature -25 °C to +55 °C

Tubular handles GN 332 are available with various options for emergency stops and buttons. They can be used for activating individual functions of a machine control, such as unlocking the safety lock of a housing door right on the handle.

The possible switching operations depend on the options and are described below. For types T1 and T2, one set of caps (consisting of the colors red, green, and blue) is supplied for each button.

The red or green LED lights up regardless of whether the button is pressed and can be used to indicate the status of a control, for example.

  • Cables with connector GN 330

The tubular handles have the CE marking, low voltage guideline 06 / 95 / EG--
Emergency stop2 channel, Breaker____logo__331m2__
1st button with 2 LEDChangover contact____logo__331m3__
-LED, red and green____logo__331_SB-12659-0__
2nd buttonMaker____logo__331m5__
Contact termination, Pin configurationPlug M12x1, 12-pole____logo__331m6__
Switching voltage / Switching currentmax. 24 V DC / max. 0.5 A-
Operating voltage (LEDs)24 V DC ± 15 %-
Protection classIdentification no. 1: IP 67 (in screwed condition)-
-Identification no. 2: IP 54-
Button colourfor each button a set of caps is included, in this colours: red, green, blue-
---
Additional variants as special application--
Emergency stop1 channel____logo__331m7__
-Maker____logo__331m8__
Number of buttons >2Breaker____logo__331m9__
Button special withChangeover contact____logo__331m10__
Button with labelling area____logo__331m11__-
