MRX.

Adjustable handles

Technopolymer

MRX-B

Adjustable handles
Brass boss, threaded hole

MRX-p

Adjustable handles
Zinc-plated steel threaded stud

MRX-SST

Adjustable handles
Stainless steel boss, threaded hole

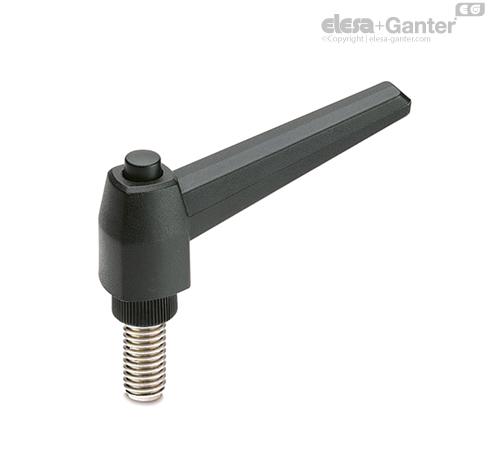

MRX-SST-p

Adjustable handles
Stainless steel threaded stud

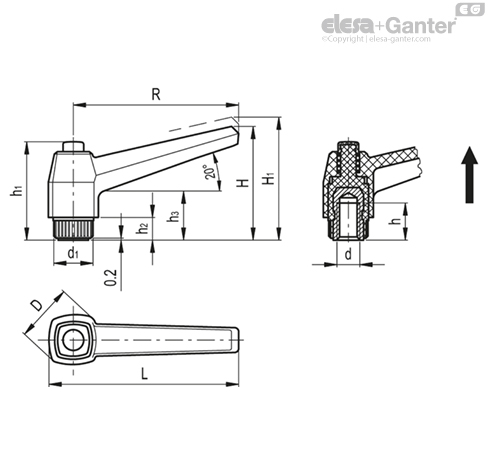

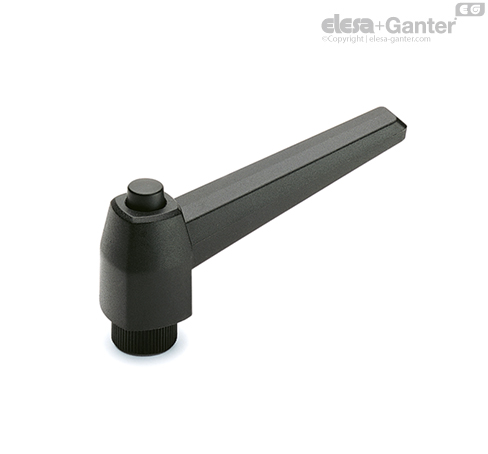

MRX-B

Adjustable handles
Brass boss, threaded hole

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7021 grey-black colour, RAL 2004 (C2-C1) orange colour, matte finish.

Push button

Technopolymer, black colour, matte finish.

Standard executions

Glass-fibre reinforced technopolymer clamping element with retaining pin, black colour, with knurling on the protruding part to make initial tightening easier. AISI 302 stainless steel return spring.

  • MRX-B: brass boss, threaded blind hole.
  • MRX-SST: AISI 303 stainless steel boss, threaded blind hole.
  • MRX-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
  • MRX-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).

Features and applications

Particularly suitable when the lever turning angle is limited owing to lack of space.

Compared to other types of adjustable handles with metal retaining screw this solution offers:

  • absolute electric insulation for the operator
  • more comfortable lever release.

Stress resistance

See ERX..

Instructions of use

For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position. By releasing the lever, the return spring automatically engages the teeth.
