GN 6337.3

Adjustable clamping levers

PUSH to disengage

GN 6337.3

Adjustable clamping levers
with threaded insert

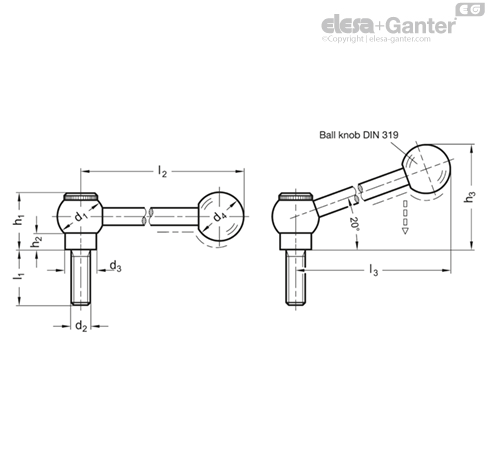

GN-6337.3

Adjustable clamping levers
with threaded stud

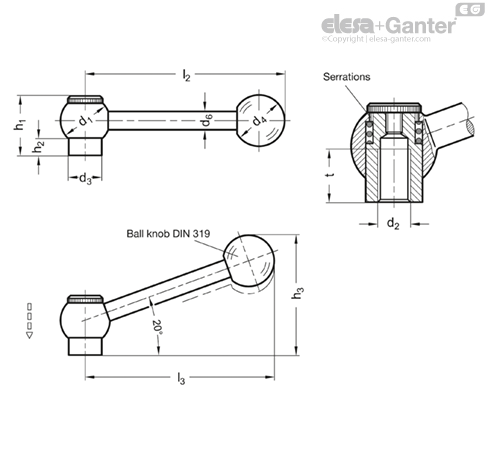

GN 6337.3

Adjustable clamping levers
with threaded insert

Types
  • Type M: Straigth lever
  • Type N: Angled lever

Steel

blackened

Tensile strength class 5.8

Ball knobs DIN 319

Plastic, Duroplast

black, shiny finish

Adjustable clamping levers GN 6337.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The insert is connected by the lever via serrations in the ball bore which can be disengaged.

Pushing the lever down, disengages the serrations and the lever can be swivelled to the ideal clamping position. Engagement is achieved by releasing the lever.

Should a rotation of 360° not be possible, the insert can be lightly screwed in (after the lever is disengaged) via a slot in the knurled screw.
