DIN 6335
Hand knobs
Cast Iron / Zinc Plated / Stainless Steel / Aluminum
DIN 6335-AL
Hand knobs
Aluminium

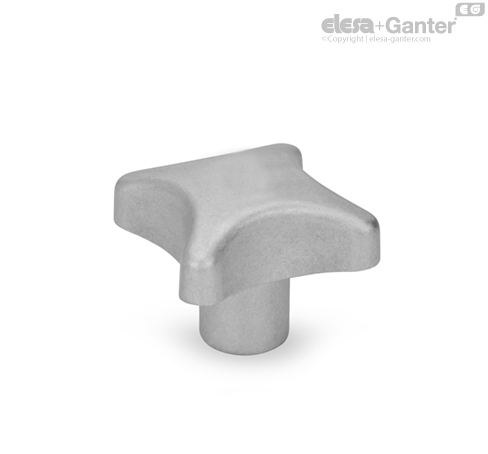

DIN 6335-GG
Hand knobs
Cast iron

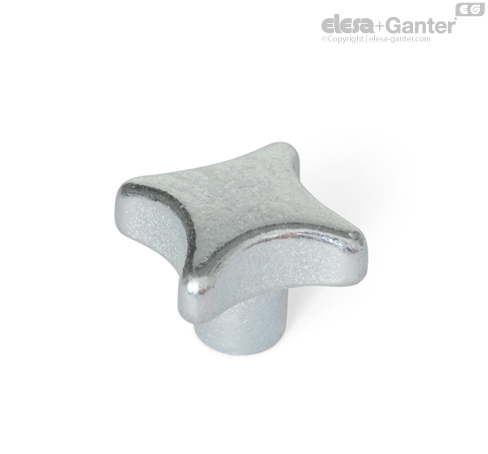

DIN 6335-GG-ZB
Hand knobs
Cast Iron, Zinc Plated, Blue Passivated

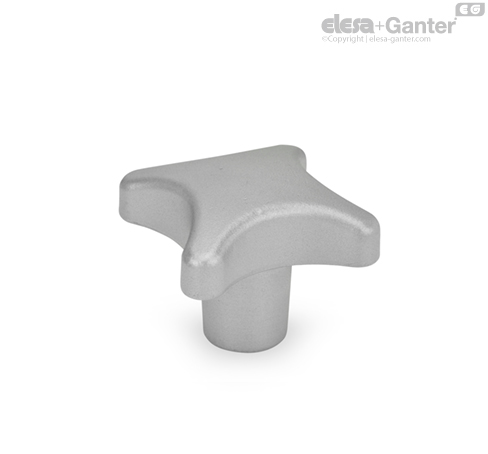

DIN 6335-NI
Hand knobs
Stainless Steel
DIN 6335-ZB
Hand knobs
Zinc plated
DIN-6335-AL
Hand knobs
Casting Only, Cast Iron / Aluminum, without Bore
DIN-6335-NI
Hand knobs
Stainless Steel, without Bore, Casting Only
DIN 6335-AL
Hand knobs
Aluminium

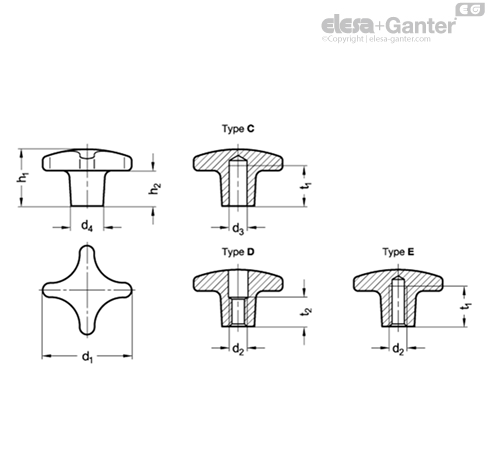

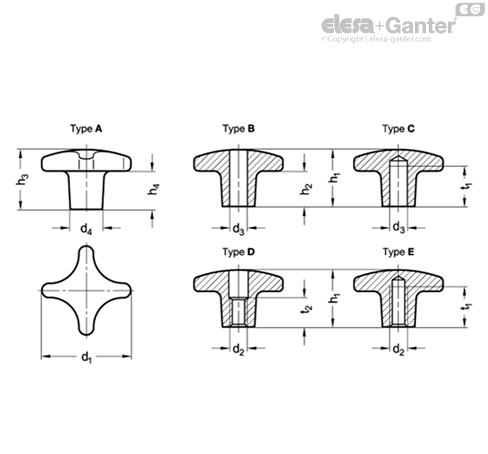

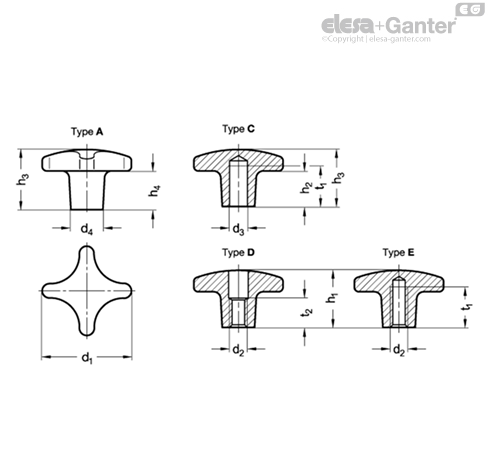

Types
- Type A: Without bore (unmachined)
- Type B: With plain through bore H7
- Type C: With plain blind bore H7
- Type D: With threaded through bore
- Type E: With threaded blind bore
Version Cast Iron (Type B / C / D / E)
Cast iron GG
Fettled and tumbled
Version Cast Iron , Zinc Plated , Blue Passivated (Type D / E)
Zinc plated, blue passivated ZB
Thread: screw mobility
Version Aluminum (Type A)
Cast iron GG
Fettled and tumbled
Aluminum AL
- Forged
- Matte finish (tumbled)
- Flash mark not visible
Version Aluminum (Type C / D / E)
Aluminum AL
Forged
- Matte finish (tumbled) MT
Flash mark not visible
- Polished PL

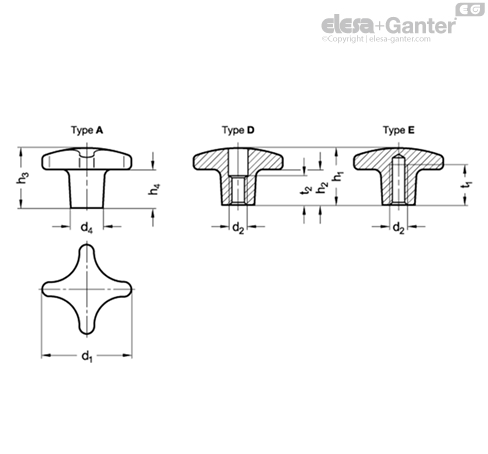

Version Stainless Steel (Type A / D / E)
Stainless steel precision casting AISI CF-8 NI
Matte, shot-blasted
