Stainless Steel NI
Sintered Steel AISI 316 LHC
Socket head cap screw DIN 912
Stainless Steel AISI 304

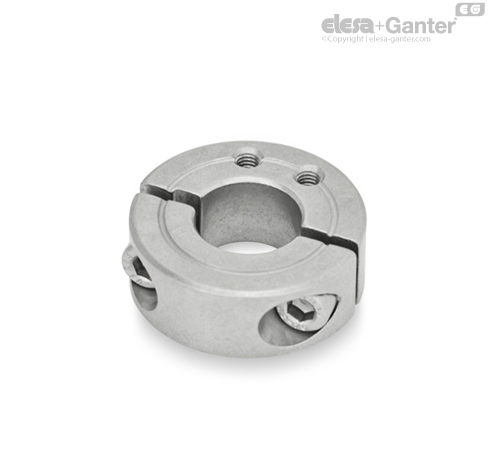

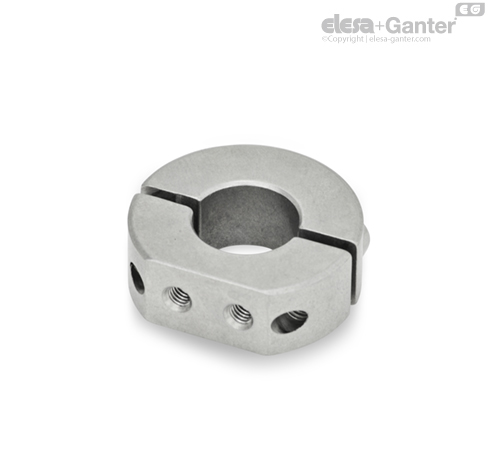

With extension-tapped holes of the split Stainless Steel-Set collars GN 7072.1, sensor holders GN 7062.10 or other elements such as the gear lever or cam can be attached to shafts and axles.
They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles. As compared to semi-split set collars, split set collars can even be assembled radially.

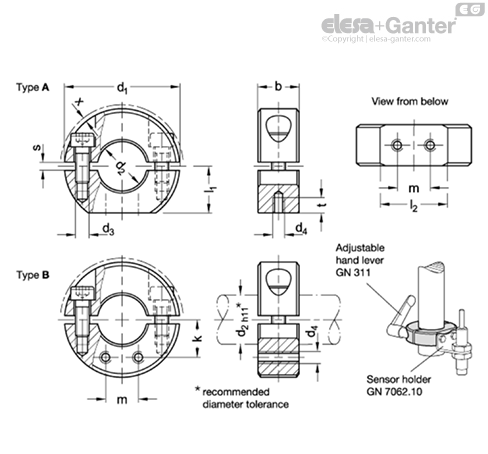

The thread d3 for sizes d1 = 30 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
