GN 132.2

Linear actuator connectors

for linear actuators Ø30, Ø40, Ø50 and Ø60, two-way axis system

GN 132.2

Linear actuator connectors
Linear actuator connectors

GN-132.2

Linear actuator connectors
With sleeve bearing

GN 132.2

Linear actuator connectors
Linear actuator connectors

Identification No.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish S

Sleeve bearing

Plastic (PTFE)

Socket cap screw DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

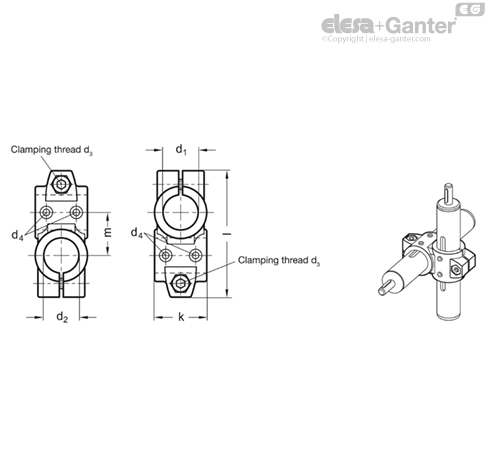

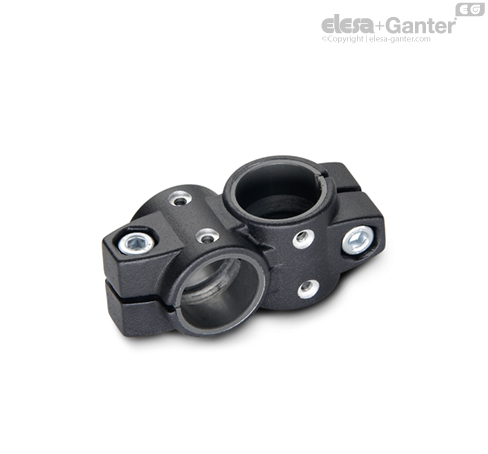

Two-way linear actuator connectors GN 132.2 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw locations z, the play of the guide bores d1 / d2 can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911  listed in the table as accessories.

  • Adjustable Hand Levers GN 911
