GN 900.3

Connecting sets X-Z

for adjustable slide units GN 900

GN 900.3

Connecting sets X-Z
Connecting sets X-Z

GN 900.3

Connecting sets X-Z
Connecting sets X-Z

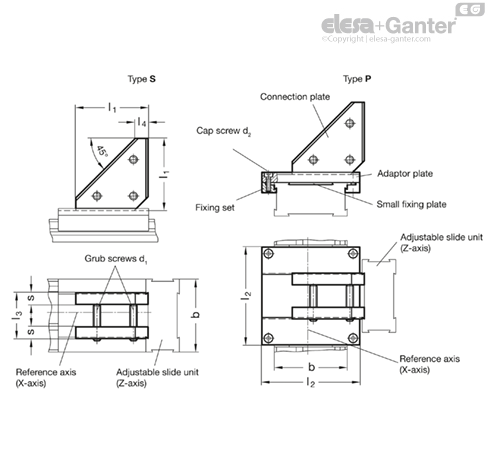

Types

  • Type P: Mounting the Z-axis via connecting plate and additional plate
  • Type S: Direct mounting of the Z-axis via connecting plate

Aluminium

anodized, natural colour

Grub screw DIN 913

Steel, zinc plated

Socket head cap screws DIN 912

Stainless Steel

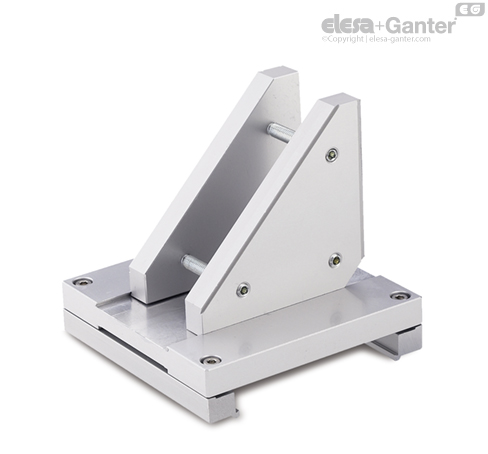

With connecting sets GN 900.3 two adjustable slide units  GN 900 can be combined to produce an X-Z axis configuration.

The combination is created by using two connection plates which eliminate any type of fixing holes in the slides. At the same time the adjustable slide unit with the Z-axis can, to a limited extent (vertically to the Z-axis), still be adjusted.

In the case of a slide configuration of the Z-axis parallel to the reference axis (type P) an adaptor plate (complete with a fastening set, small fixing plates and socket head cap screws) is required which is included in the set.

The small fixing plates serves for the 90° alignment of the Z-axis and fine adjustment of the adaptor plate (Type P).

All parts required to make up a set are included.
