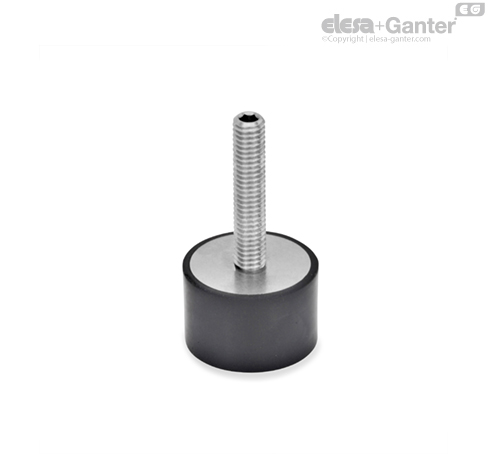

GN 439.5

Stainless Steel-Levelling feet

with rubber underlay, vulcanized

GN 439.5

Stainless Steel-Levelling feet
Stainless Steel-Levelling feet

GN 439.5

Stainless Steel-Levelling feet
Stainless Steel-Levelling feet

Stainless Steel AISI 304

Rubber underlay

Acrylonitrile butadiene rubber (NBR)

  • vulcanized
  • black
  • temperature resistant up to 120 °C
  • Hardness Shore A 70

GN 439.5 levelling feet are used for installing smaller machines, systems or devices.

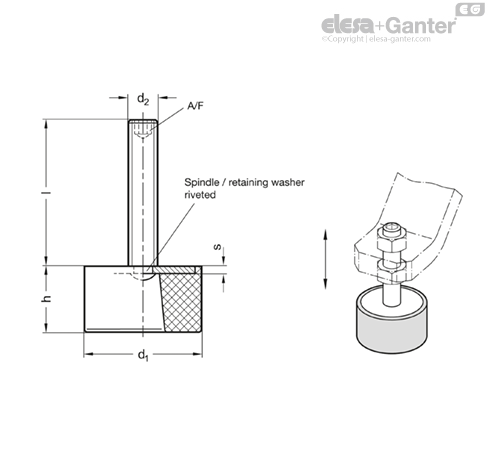

Thanks to the rubber underlay, they have a damping, noise-reducing effect and prevent surface damage. They are also designed such that the threaded spindle can absorb compressive forces. This is necessary because the retaining washer is not evenly supported during leveling.

Thanks to the stable rivet connection between the threaded spindle and the retaining washer, the introduced forces can be reliably transmitted to the rubber underlay.

  • other spindle diameters and lengths
