GN 115-WOE-ZD

Latches

with Operating Elements

GN 115-WOE-ZD-CP

Latches
Housing collar chrome plated

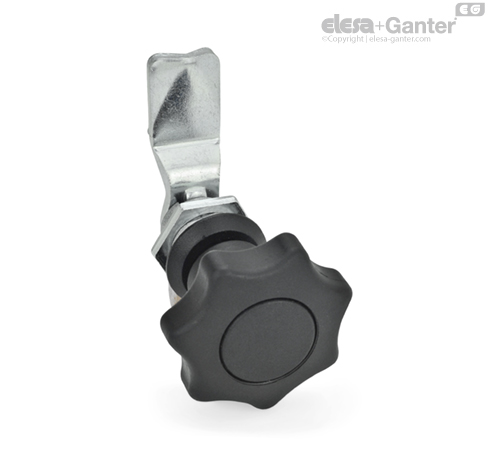

GN 115-WOE-ZD-PC

Latches
Housing collar powder coated

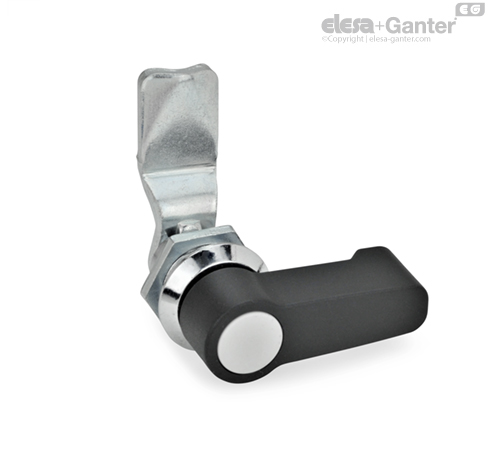

GN 115-WOE-ZD-CP

Latches
Housing collar chrome plated

Types

  • Type SG: With star knob
  • Type SK: With wing knob
  • Type ST: With T-handle
  • Type RG: With knurled knob GN 7336
  • Type KG: With wing knob
  • Type HG: With lever
  • Type LG: With hand lever (only in SW)

Lock housing

Zinc die casting

  • Housing collar, chrome plated
  • Housing collar, powder coated

Black, RAL 9005, textured finish SW

Operating elements

  • Type SG, SK, ST, RG, KG, HG

Plastic (Polyamide PA)

Black, matte finish

  • Type LG

Zinc die casting

Powder coated

Black, RAL 9005, textured finish

Cover cap (Type RG, KG, HG, LG)

Plastic (Polyamide PA)

Light gray, matte finish

Other parts

Steel, zinc plated, blue passivated

Protection class IP 65

Latches GN 115-WOE-ZD lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.

Latches GN 115-WOE-ZD are supplied with loosely enclosed latch arm.

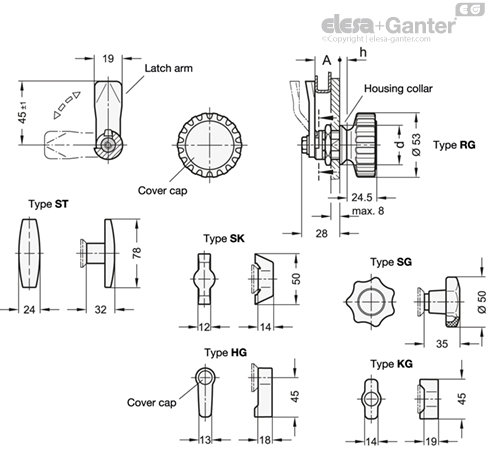

For installation, set a hole in the door, cover or hatch as shown in the outline drawing.

Once assembled, the latch is pushed through the bore diameter from the front. The hex nut can then be pushed over the latch from the back and bolted in place.

The required installation bore in the door leaf, is usually generated by punching or laser machining in series production.

The installation bore diameter can also be created by drilling or milling as shown in the outline drawings.

For small series and steel sheets below 2 mm thickness, the sheet metal punches GN 123 are the tool of choice.
