GN 615.7

Spring plungers

with limit switch

GN 615.7

Spring plungers
Spring plungers

GN 615.7

Spring plungers
Spring plungers

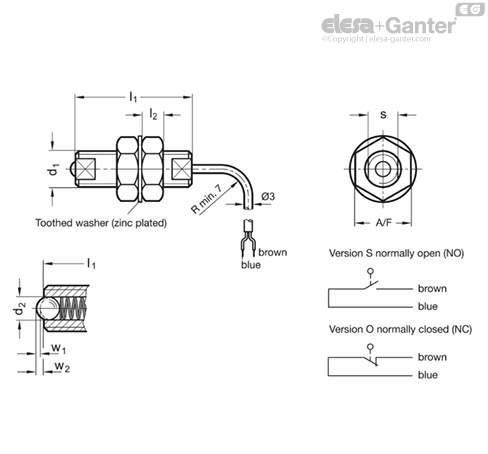

Types

  • Type S: normally open
  • Type O: normally closed

Screw

Steel, nickel plated

Ball

Steel, hardened

Hexagonal nuts

Steel, nickel plated

Limit switch

  • Voltage: 5 ... 24 V DC
  • Switching load recom.: 5-10 mA
  • Switching load max.: 20 mA DC
  • Life expectancy: 3 million operations
  • Temperature range: -10 °C ... +80 °C

Supply cable PVC:

  • Ø 3; 2 phase, ≈ 2 meters long
  • max. tensile load 20 N
  • grey, for Type S (normally open)
  • black, for Type O (normally closed)

Protection class IP 40

Spring plungers GN 615.7 are used for end stops as wells as contacts.

Simultaneously an electrical control signal can be released from the built-in limit switch.
