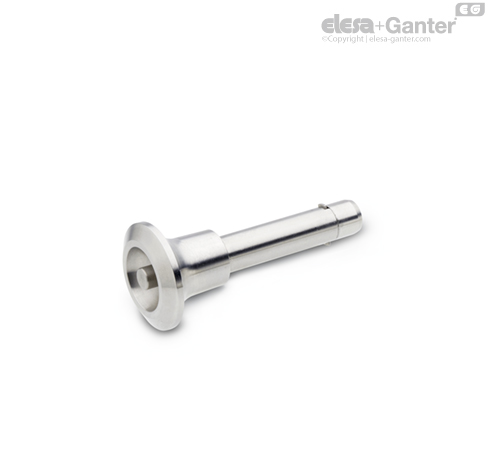

GN 114.6

Stainless Steel-Locking pins

Stainless Steel knob, with axial lock (Pawl)

GN 114.6

Stainless Steel-Locking pins
Stainless Steel-Locking pins

GN 114.6

Stainless Steel-Locking pins
Stainless Steel-Locking pins

Knob / Push button / Slide

Stainless Steel AISI 303

Pin

Stainless Steel AISI 303

Pawl

Stainless Steel AISI 304 (sheet metal)

Spring

Stainless Steel AISI 301

Stainless Steel-Locking pins with axial lock GN 114.6 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and replaced again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
