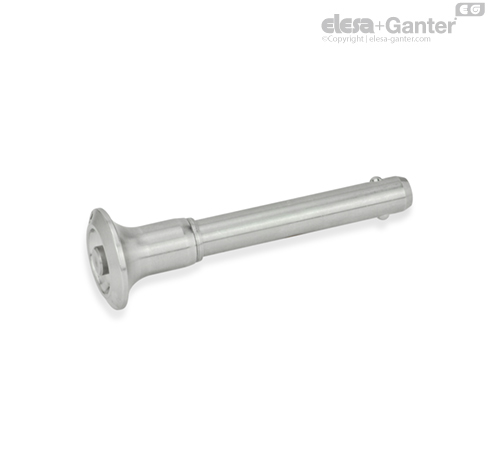

GN 113.9

Stainless Steel-Ball lock pins

with Stainless Steel-Knob, plunger material no. AISI 303

GN 113.9

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

GN 113.9

Stainless Steel-Ball lock pins
Stainless Steel-Ball lock pins

Plunger

Stainless Steel AISI 303

Knob, push button

Stainless Steel AISI 316L

Balls

Stainless Steel AISI 420C

Spring

Stainless Steel German material no. 1.4565

Stainless Steel-Ball lock pins GN 113.9 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.

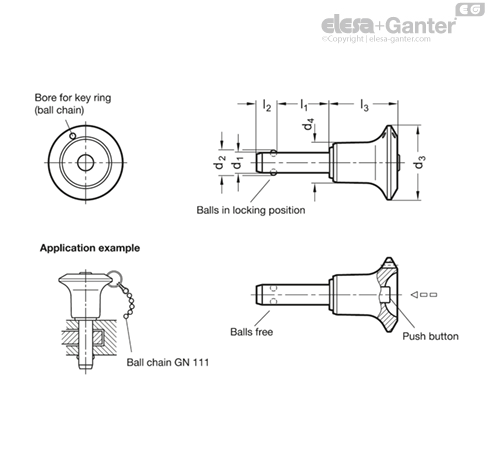

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
