GN 822

Mini indexing plungers

Steel / Stainless Steel, Covered indexing mechanism, with and without rest position

GN 822

Mini indexing plungers
Mini indexing plungers, Steel

GN 822-NI

Mini indexing plungers
Mini indexing plungers, Stainless Steel

GN 822

Mini indexing plungers
Mini indexing plungers, Steel

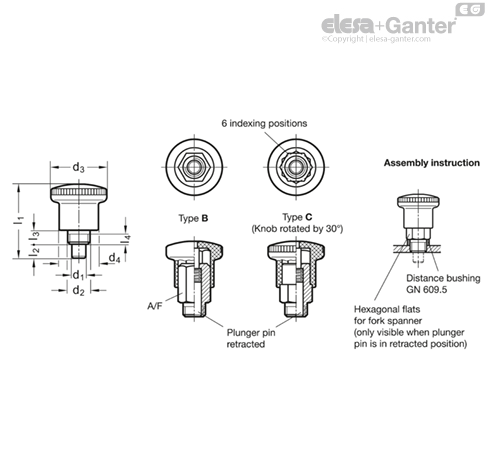

Types

  • Type B: without rest position
  • Type C: with rest position

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel AISI 303 NI

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob Plastic (Polyamide PA)

  • black, matt
  • red, RAL 3000 RT
  • not removable

Mini indexing plungers GN 822 are distinguished for their small dimensions. They have been designed for installation in thin walled sheet metal constructions.

They are inserted into position by holding them by the serrated knob. The spanner flats on the lock nut are revealed when retracting the pin, so that the mini indexing plunger can be easily tightened by means of a fork spanner.

With Type C the knob can be turned by 30° and a notch keeps the knob in this position.

Distance bushings GN 609.5 are to be ordered seperately.
