GN 722.6

Indexing plungers

Steel / Stainless Steel, with Flange for Surface Mounting, with or without Rest Position

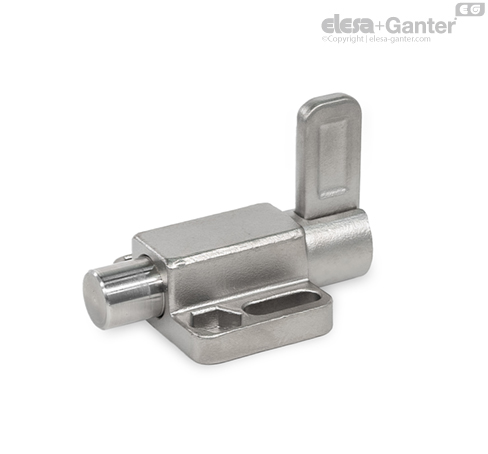

GN 722.6-A4

Indexing plungers
Stainless Steel

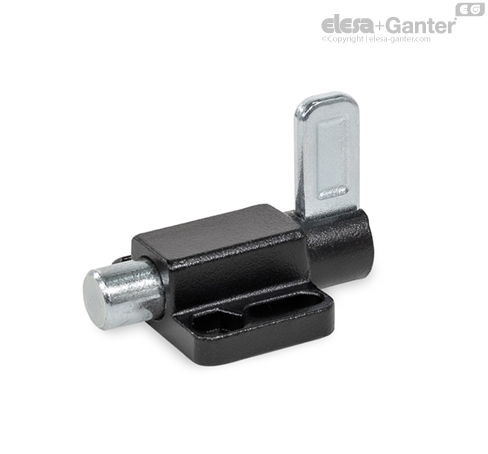

GN 722.6-ST

Indexing plungers
Steel

GN 722.6-A4

Indexing plungers
Stainless Steel

Types

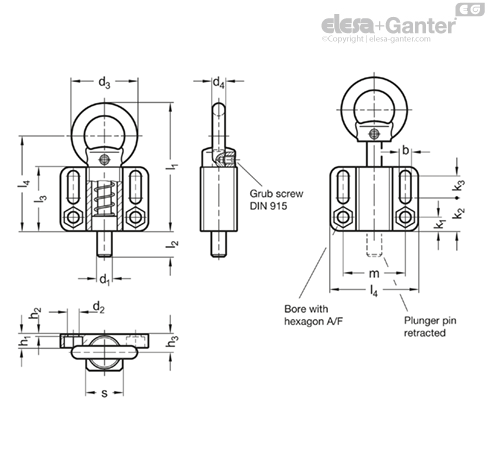

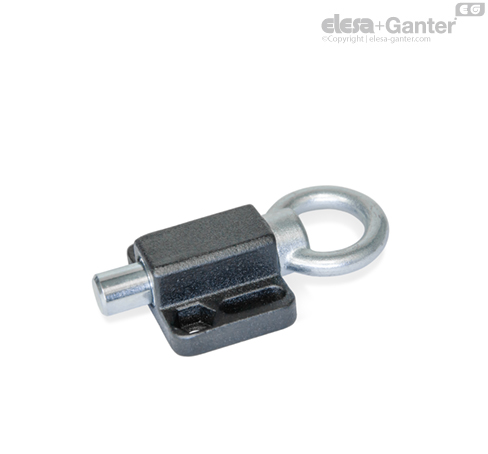

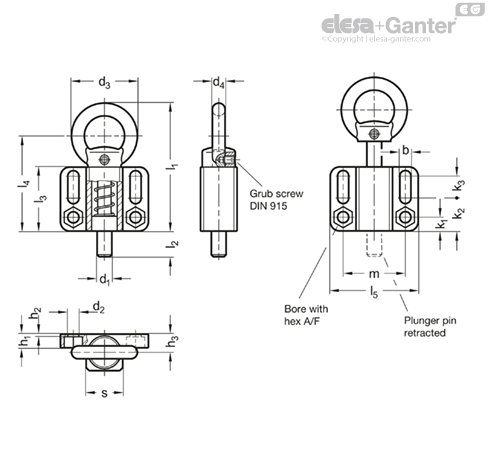

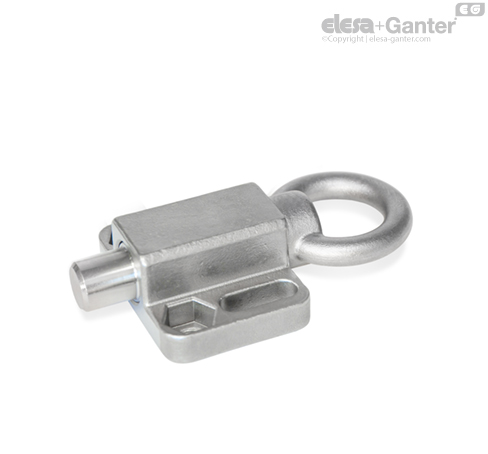

  • Type A: With pull ring, without rest position

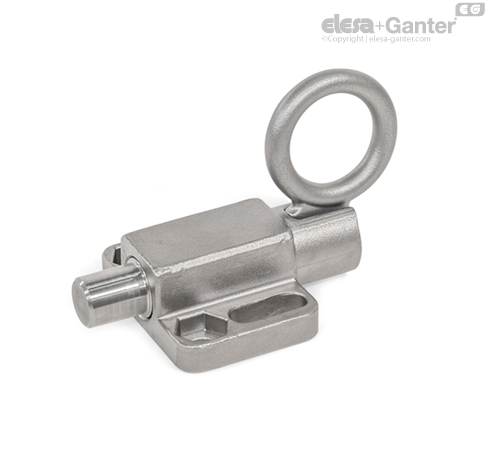

  • Type C: With pull ring, with rest position

Guide

Steel precision casting

  • Zinc plated, blue passivated ZB
  • Zinc plated and powder coated

Black, RAL 9005, textured finish SW

Guide

Stainless steel precision casting AISI 316 A4

Pull ring

  • Steel precision casting

Zinc plated, blue passivated (ZB and SW)

  • Steel precision casting AISI 316 (for A4)

Plunger Pin

  • Steel precision casting

Steel, zinc plated, blue passivated (ZB and SW)

  • Stainless steel AISI 316 (for A4)

Grub Screw DIN 915

  • Steel, zinc plated (for ZB and SW)
  • Stainless steel (for A4)

Pressure spring

Stainless steel AISI 316Ti

With indexing plungers GN 722.6, the plunger pin is actuated via the pull ring. This is done either manually, with a cable or by means of an extended pull rod with hook. The ST version is designed for applications in steel construction, whereas the stainless steel version A4 is suitable for use in particularly aggressive environments.

The type with rest position is used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the locking pin has been retracted. The ring is held in this position by the catch groove at the top of the guide.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.

For fastening, slotted or hexagonal mounting holes allow the use of socket cap screws DIN 912 and hex screws or nuts according to DIN 931 or DIN 934.
