GN 136

Sheet metal hinges

Stainless Steel / Steel, square or vertically elongated

GN 136

Sheet metal hinges
Steel

GN 136-A4-HE

Sheet metal hinges
Stainless Steel, Horizontally Elongated

GN 136-A4-SVE

Sheet metal hinges
Stainless Steel, Square or Vertically Elongated

GN 136-NI

Sheet metal hinges
Stainless Steel

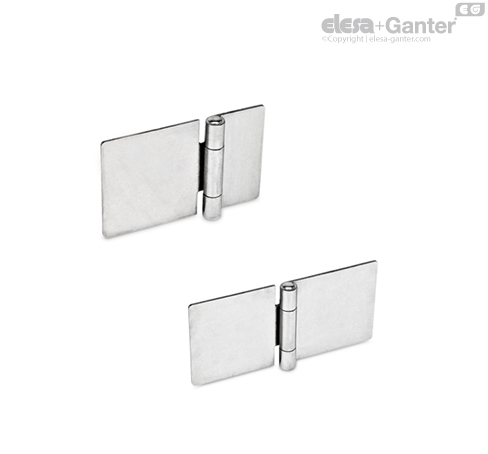

GN 136-NI-HE

Sheet metal hinges
Stainless Steel, Horizontally Elongated

GN 136-NI-SVE

Sheet metal hinges
Stainless Steel, Square or Vertically Elongated

GN 136-ST-HE

Sheet metal hinges
Steel, Horizontally Elongated

GN 136-ST-SVE

Sheet metal hinges
Steel, Square or Vertically Elongated

GN 136

Sheet metal hinges
Steel

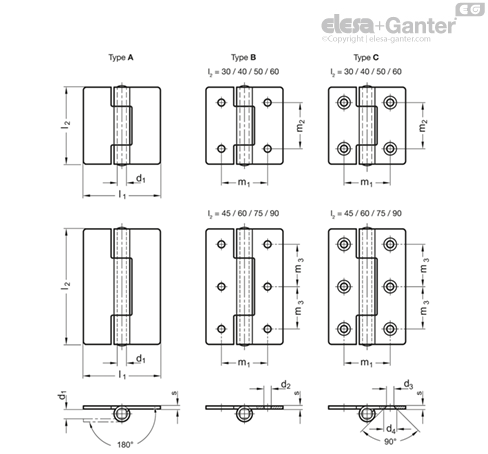

Types

  • Type A: without bores, for welding (only in Stainless Steel NI)
  • Type B: with bores for cylinder head screws / lens head screws
  • Type C: with bore, for countersunk screws

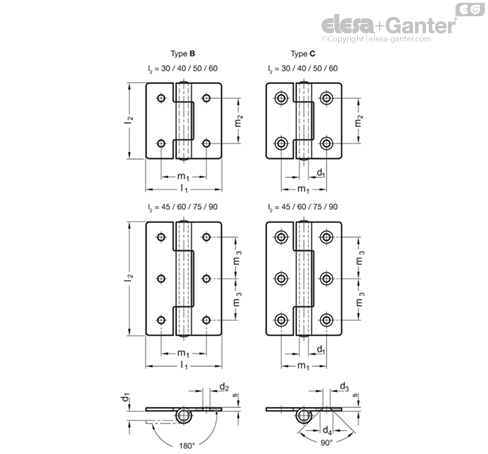

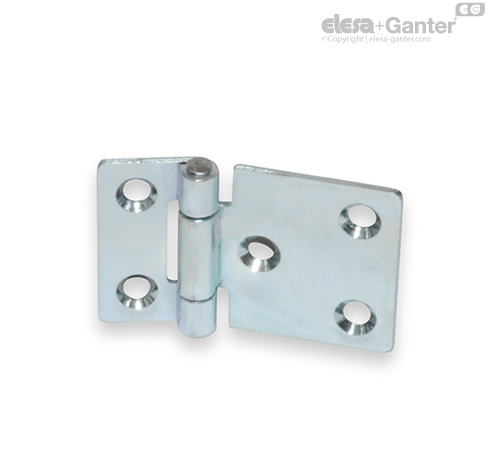

Version in Steel

Steel ST

  • only types B and C
  • zinc plated, blue passivated

Pin

Stainless Steel AISI 304

riveted

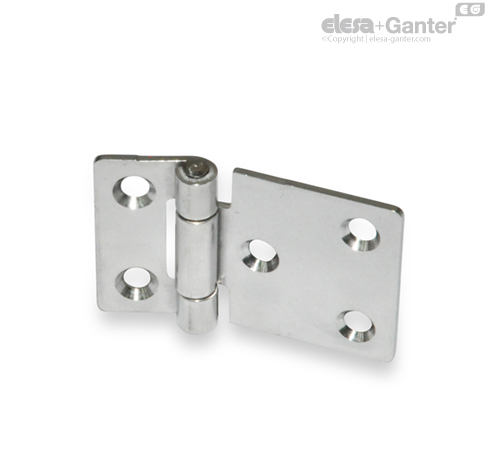

Version in Stainless Steel

Stainless Steel AISI 304 NI

all types

Pin

Stainless Steel AISI 304

riveted

Sheet metal hinges GN 136 are low-cost designs for low-load applications.
