CFR.

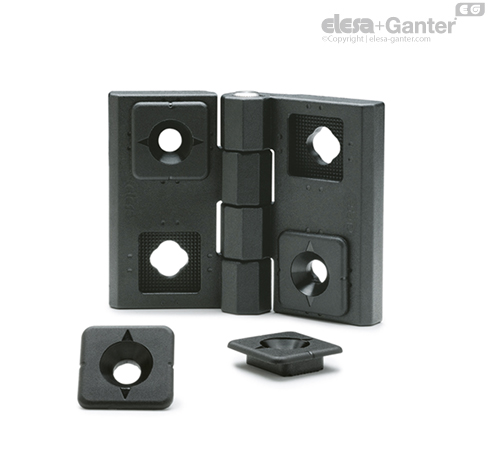

Hinge with adjusting inserts

SUPER-technopolymer

CFR.

Hinge with adjusting inserts
Hinge with adjusting inserts

CFR.

Hinge with adjusting inserts
Hinge with adjusting inserts

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Adjusting inserts

Technopolymer, black colour.

Rotating pin

AISI 303 stainless steel.

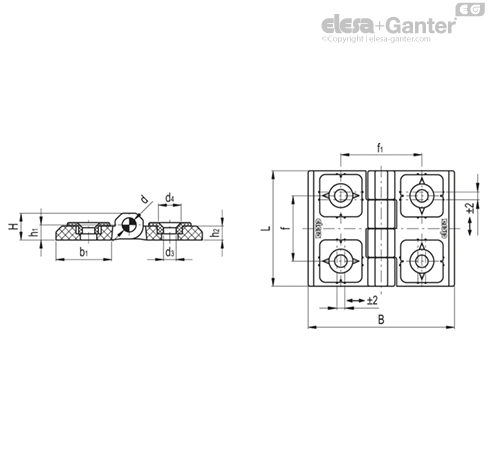

Standard execution

Pass-through holes for M6 countersunk-head screws.

Features and applications

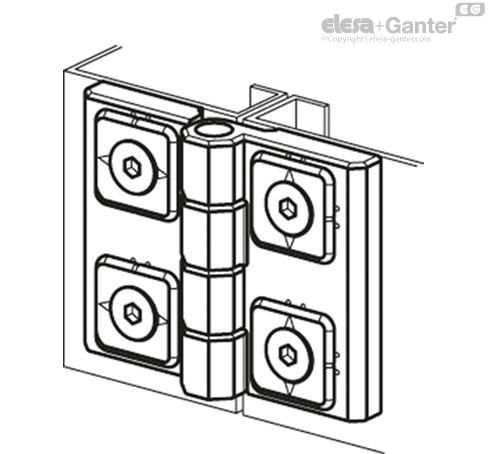

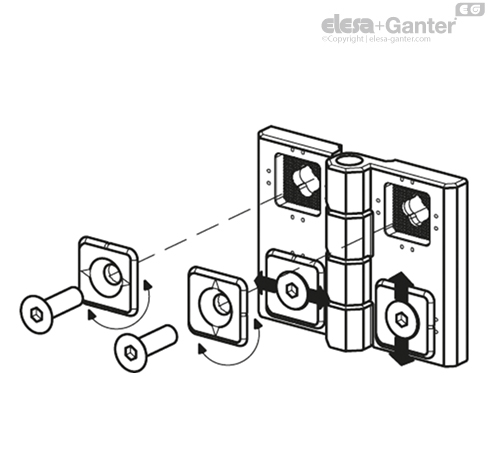

The adjusting inserts (ELESA patent) are designed to compensate limited misalignments of doors. Vertical and horizontal adjustments are both possible by simply setting the orientation of the inserts, thus obtaining the perfect alignment between the door and the frame.

The knurling on the hinge body and on the rear of the inserts keep the precise position during the assembly of the hinge.

This hinge can be used to compensate vertical, horizontal or both misalignments.

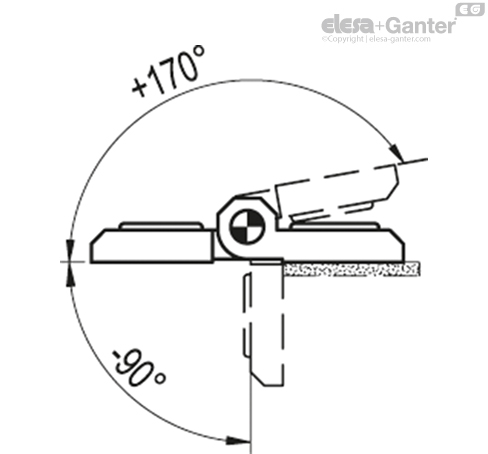

Rotation angle (approximate value)

Max 260° (-90° and +170° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.


Resistance testsAXIAL STRESSRADIAL STRESS90° ANGLED STRESS
____logo__CFR_S_AXIAL______logo__CFR_S_RADIAL______logo__CFR_S_90__
DescriptionMax. limit stati load
Sa [N]
Max. limit stati load
Sr [N]
Max. limit stati load
S90 [N]
CFR.60 SH-6180027002130

The max static load is the value above which the material may break thus prejudicing the hinge functionality use. Obviously, a suitable factor, according to the importance and the safety level of the specific application must be applied to this value.
