EBP.

Bridge handles

Technopolymer

EBP-B

Bridge handles
Brass boss, threaded blind holes for back mounting

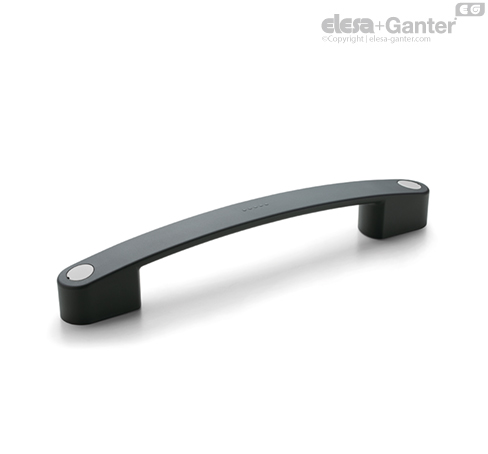

EBP-L

Bridge handles
Bridge handles

EBP.

Bridge handles
Pass-through holes for front mounting

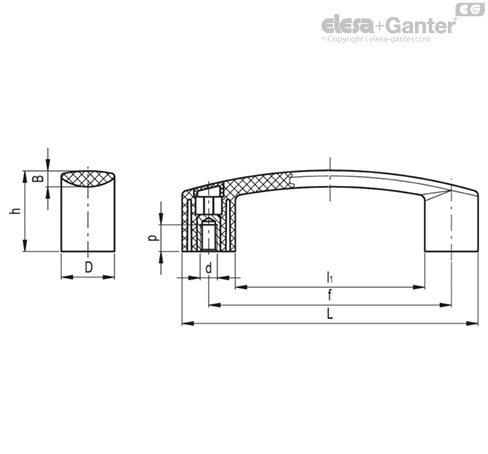

EBP-B

Bridge handles
Brass boss, threaded blind holes for back mounting

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Screw-covers

  • ECA.B: glass-fibre reinforced polyamide based (PA) technopolymer, in Elecolors colours, matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately.

Standard executions

  • EBP.: pass-through holes for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts.
  • EBP-B: brass bosses, threaded blind holes for back mounting.

Features and applications

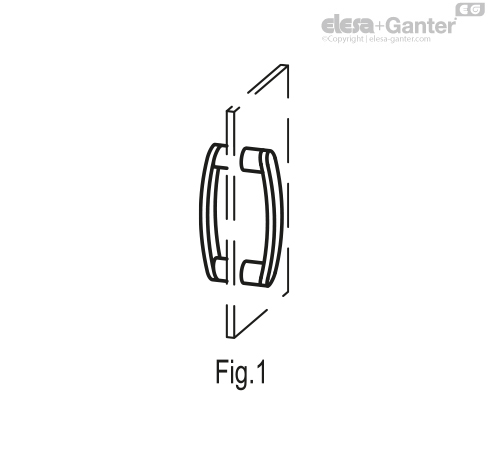

EBP. handles with front mounting can be assembled in pairs opposed to EBP.B handles with back mounting (Fig. 1).



Technical data

Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Accessories on request

  • DS-EBP.: spacer sleeves in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface.
  • ECA.B: glass-fibre reinforced polyamide pased (PA) technopolymer screw-covers, in Elecolors colours, matte finish, press-fit assembly (see table).
