GLD-AZ

Roller side guides

Technopolymer, steel

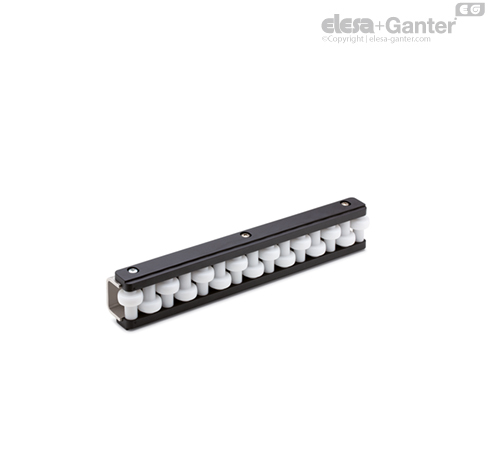

GLD-1-AZ

Roller side guides
One row of rollers

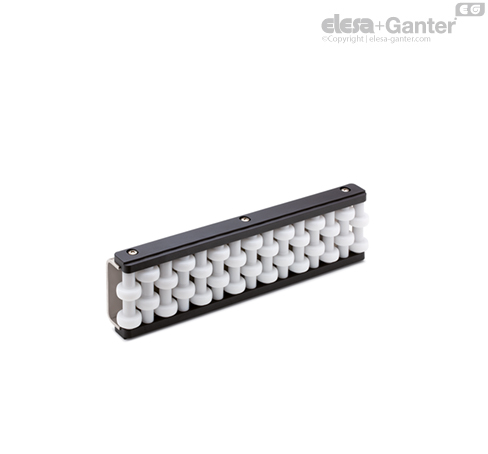

GLD-2-AZ

Roller side guides
Two rows of rollers

GLD-3-AZ

Roller side guides
Three rows of rollers

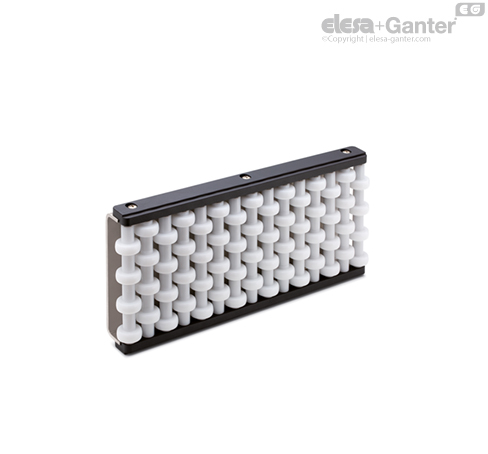

GLD-4-AZ

Roller side guides
Four rows of rollers

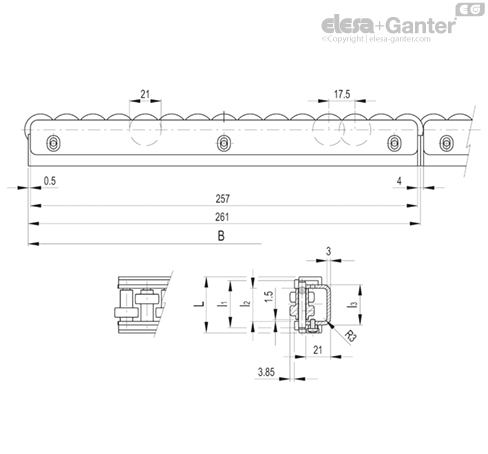

GLD-1-AZ

Roller side guides
One row of rollers

Profile

Zinc-plated steel.

Pins support

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Pins

AISI 304 stainless steel.

Rollers

Shaped with cylindrical contact area, in acetal resin technopolymer, white colour.

Standard executions

  • GLD-1-AZ: one row of rollers.
  • GLD-2-AZ: two rows of rollers.
  • GLD-3-AZ: three rows of rollers.
  • GLD-4-AZ: four rows of rollers.

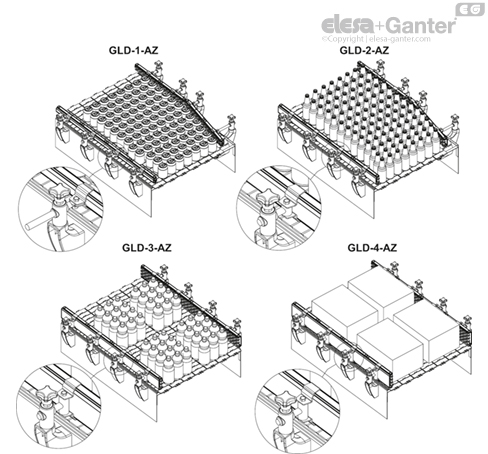

Features and applications

The GLD-AZ side guides are particularly solid self-supporting structures, suitable for handling products of significant weight and size (e.g. pallets).

The shaped rollers are particularly suitable for glass product guides, as in the event of accidental breakages they facilitate the expulsion of debris.

Special executions on request

Roller side guides with zinc-plated steel profile, length 3129 mm.

Accessories on request

  • MPG-P: fixing pin (419513 MPG-P16-M10x17).
  • SPF: guide rail brackets for linear positioning.
  • SPR: guide rail brackets for linear and corner positioning.
  • SPR.V: guide rail brackets for linear and corner positioning.
