GN 736.1

Control handwheels with scale lug

Aluminium black, anodized

GN 736.1

Control handwheels with scale lug
Aluminium

GN 736.1-S

Control handwheels with scale lug
Aluminium, with standard scale

GN 736.1

Control handwheels with scale lug
Aluminium

Types

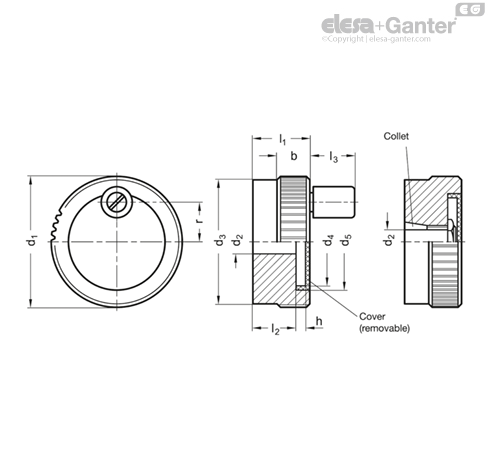

  • Type A: without handle
  • Type D: with revolving handle

Bore codes

  • Version B: without keyway
  • Version K: with keyway
  • Version Z: with collet

Coding

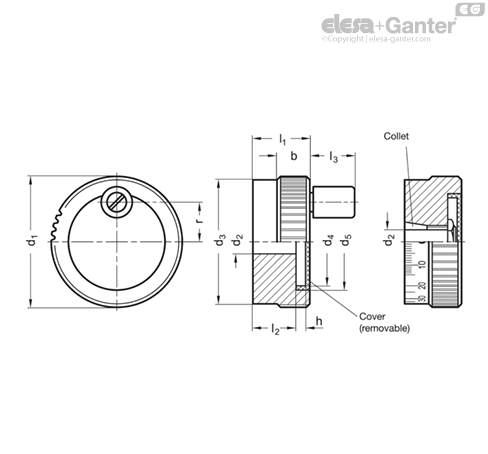

  • Coding S: with standard scale 0...90, 100 graduations acc. scale scheme d1/100 A RA 0-10 20...90/10 (only for bore code Z)

Aluminium

anodized, black

Hub cover

Plastic, light grey

Collet / Hexagon nut

Brass

Revolving cylindrical handles

  • Plastic, technopolymer, black matt
  • Spindle, Stainless Steel AISI 303

Control handwheels GN 736.1 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the knob.

The model fitted with collet offers an absolutely reliable mounting on the shaft and at the same time allows an easy setting of the adjustable scale ring wheel. The scale is wear resistant and easily legible since the engraved alu coloured numbers contrast with the black anodized surface. Besides the standard scale (Coding S) the control handwheels can be supplied with any type of graduation.

Full details of the available graduations, numbering sequence, number position and type of scale see under "How to order graduations" .
