GN 273

Swivel Clamp Connectors

Aluminum / Stainless Steel

GN 273

Swivel Clamp Connectors
Swivel clamp connectors

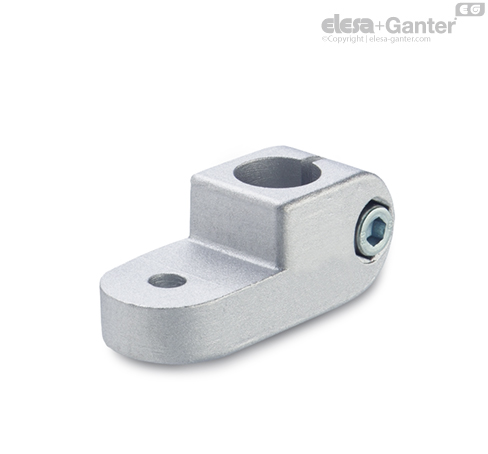

GN 273-AL

Swivel Clamp Connectors
Aluminum

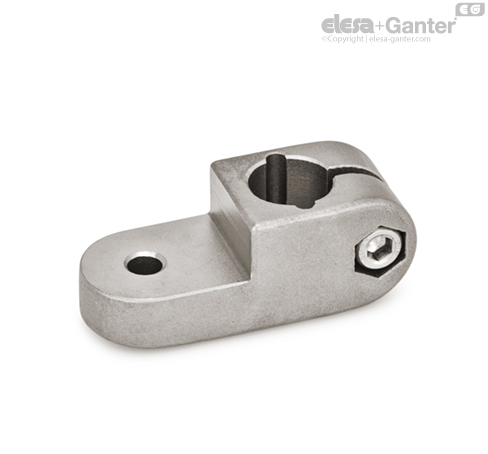

GN 273-NI

Swivel Clamp Connectors
Stainless Steel

GN 273

Swivel Clamp Connectors
Swivel clamp connectors

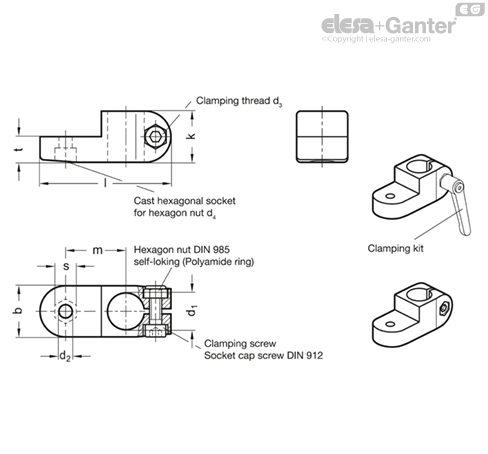

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bore mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bore of GN 273 swivel clamp connectors is mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911  (article code see table of dimensions).

GN 273 swivel clamp connectors can be assembled with swivel clamp connectors GN 271 , GN 275  or GN 277  to create swivel clamp connector joints.
