GN 162

Base plate connector clamps

Aluminum / Stainless Steel, with 4 Mounting Holes

GN 162

Base plate connector clamps
Base plate connector clamps

GN 162-AL

Base plate connector clamps
Aluminum

GN 162-NI

Base plate connector clamps
Stainless Steel-Base plate connector clamps

GN 162

Base plate connector clamps
Base plate connector clamps

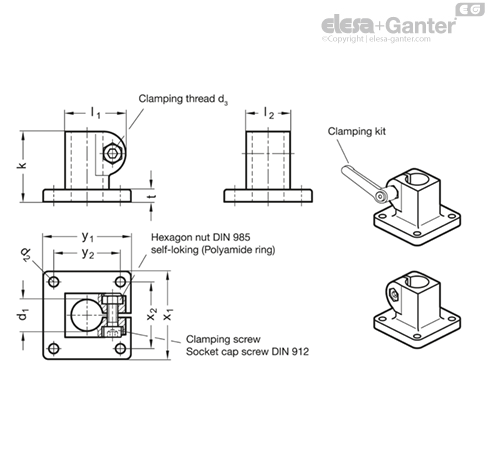

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

Version in Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Version in Stainless Steel NI

AISI CF-8

matt shot-blasted

Clamping bores mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

Clamping bores of the base plate clamps GN 162 are mechanically machined and designed for construction tubes GN 990- or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911 - / GN 911.3 - (article code see table of dimensions).

  • Clamping kits GN 911  / GN 911.3
