GN 101.1

Adjustable hand levers

Zinc die casting, Bushing / Threaded bolt Stainless Steel

GN 101.1

Adjustable hand levers
with internal thread

GN-101.1

Adjustable hand levers
with threaded stud

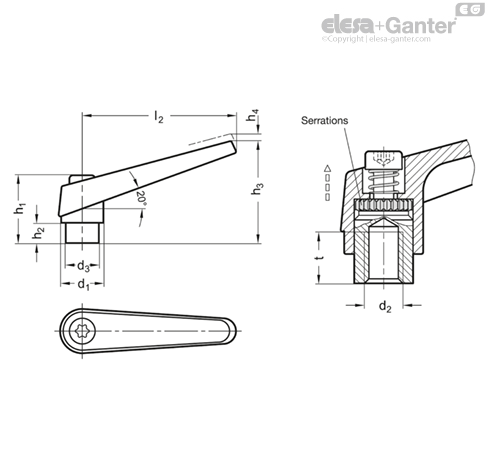

GN 101.1

Adjustable hand levers
with internal thread

Handle

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

orange, RAL 2004, textured finish OS

Version with internal thread

Threaded bush and retaining screw

Stainless Steel AISI 303

Version with threaded stud

Threaded stud and retaining screw

Stainless Steel AISI 303

Adjustable hand levers GN 101.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
