RE.F8-H

Castors with bracket for medium-heavy loads

Technopolymer monolithic wheels

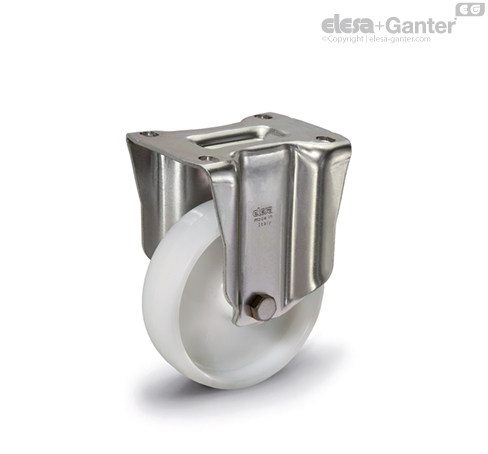

RE.F8-PBL-H

Castors with bracket for medium-heavy loads
Fixed plate bracket, without brake

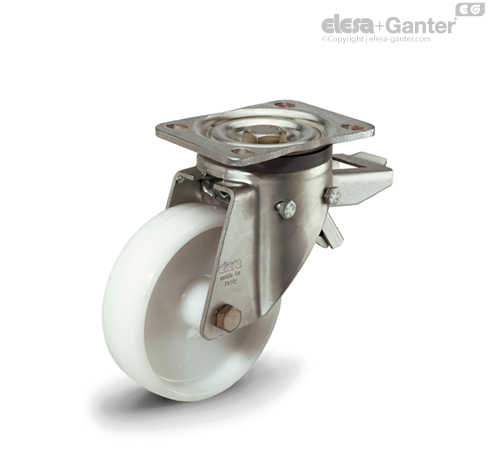

RE.F8-SBF-H

Castors with bracket for medium-heavy loads
Turning plate bracket, with brake

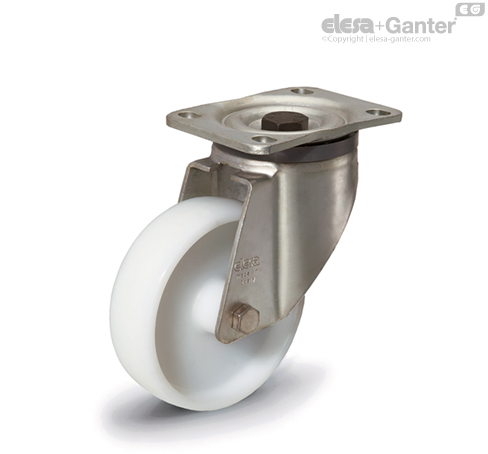

RE.F8-SBL-H

Castors with bracket for medium-heavy loads
Turning plate bracket, without brake

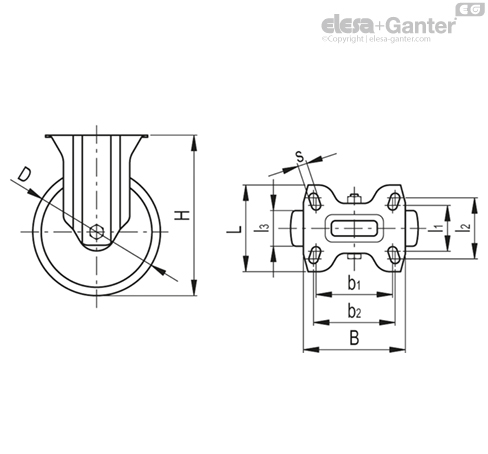

RE.F8-PBL-H

Castors with bracket for medium-heavy loads
Fixed plate bracket, without brake

Wheel centre body

Polyamide-based (PA) technopolymer.

Rolling action

Hub with pass-through hole.

Fixed plate bracket

Yellow zinc-plated steel sheet. The bracket is designed to withstand loads up to 7300N. It ensures capacities that make it suitable for heavy industrial applications.

Turning plate bracket

Yellow zinc-plated steel sheet.The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Does not require maintenance. The bracket is designed to withstand loads up to 7300N. It ensures capacities that make it suitable for heavy industrial applications.

It consists of (see fig.1):

  1. fitting plate: yellow zinc-plated steel sheet;
  2. fork: yellow zinc-plated steel sheet;
  3. ball race ring: yellow zinc-plated steel sheet;
  4. central pin: class 8.8 steel screw and steel nut;
  5. rotation system: dual grease-lubricated ball race;
  6. dust seal: RAL 7015 dark grey technopolymer.

Brake

Front brake (RE.F8-100-125) or rear brake (RE.F8-150-200) dual-effect with simultaneous locking of wheel and bracket. The brake is simple and effective to use: it is actuated and released by a simple action from the top downward at the tip of two separate pedals, thus ensuring the utmost manoeuvring comfort. The braking efficacy may be adjusted with a socket head screw M8. (only for wheels with rear brake RE.F8-150-200).

Standard executions

  • PBL-H: fixed bracket, without brake.
  • SBL-H: turning plate bracket, without brake.
  • SBF-H: turning plate bracket, with brake.


Applications

Suitable for heavy industrial applications. Excellent wear and tearing resistance. For further information see RE.F8-.
