Ball Transfer Units: Essential Components for Modern Conveyor Systems
What Are Ball Transfer Units and Why Do They Matter?
Ball transfer units are specialised mechanical components that enable smooth, omnidirectional movement of packages, cartons, and workpieces in conveyor systems. These industrial ball bearings allow materials to glide effortlessly in any direction with minimal friction, making them indispensable for packaging lines, manufacturing facilities, and material handling operations.
Key Benefits of Ball Transfer Units in Packaging Applications
Energy Efficiency: Ball transfer units reduce the power required to move heavy loads by minimizing friction between surfaces.
Versatile Movement: Unlike traditional rollers, ball transfer units enable 360-degree movement, allowing packages to be redirected, sorted, and positioned with precision.
Reduced Wear: The smooth rolling action extends the lifespan of both the conveyor system and the transported goods.

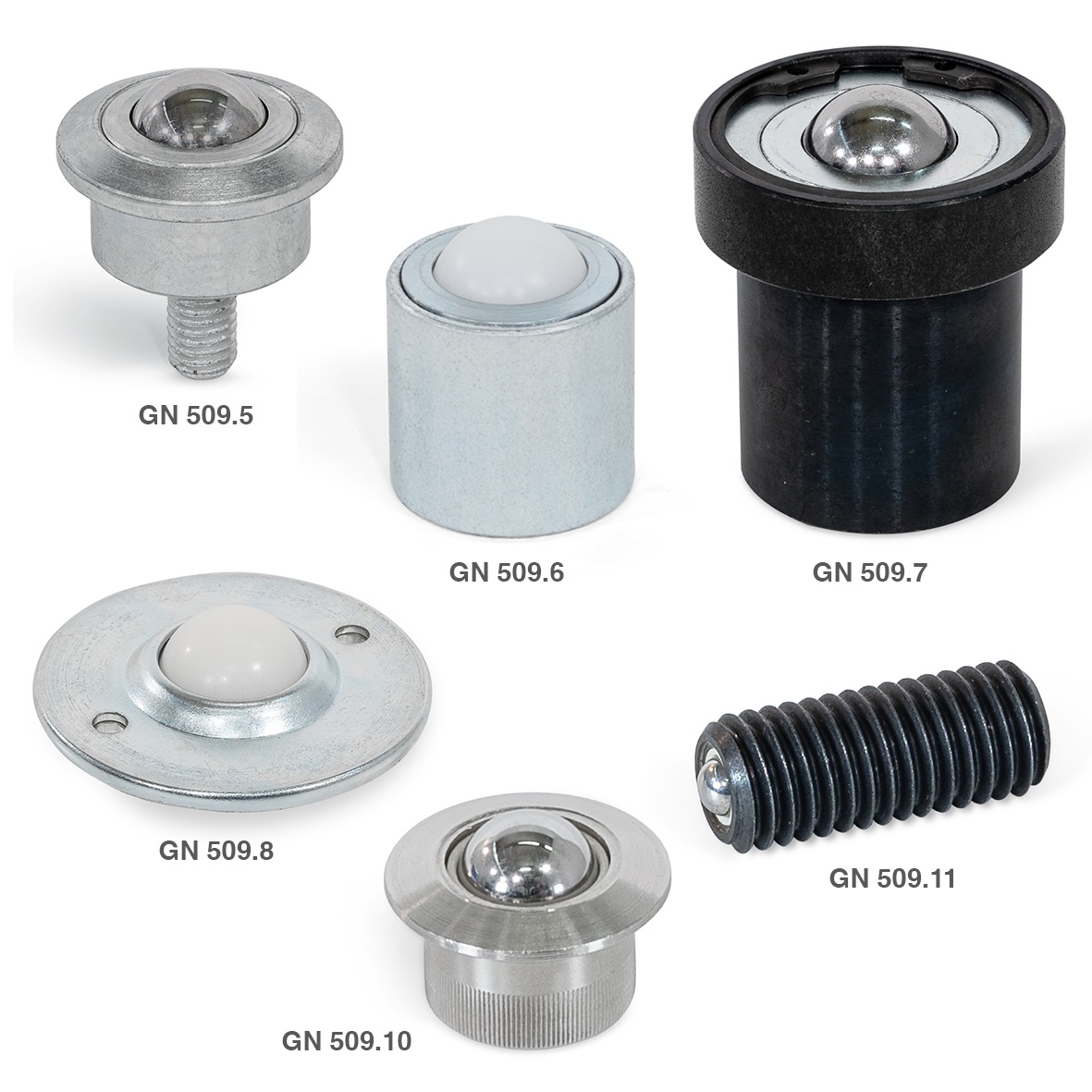

Elesa+Ganter GN 509 Series: Comprehensive Ball Transfer Solutions
The expanded GN 509 series offers specialized ball transfer units designed for specific packaging and conveyor applications:
Heavy-Duty Applications
- GN 509.5: Features threaded stud mounting for secure installation, preventing unit loss during operation
- GN 509.6: Designed with internal threading, perfect for side guide applications in packaging lines
Advanced Load Distribution
- GN 509.7: Incorporates vertical spring technology for even load distribution across multiple units, ideal for handling irregularly shaped packages. Includes overload protection that retracts the unit when maximum capacity is exceeded.
Specialized Materials and Designs
- GN 509.8: Lightweight sheet steel construction with optional POM (Polyacetal) balls for lower-load applications
- GN 509.10: Compact stainless steel design with plastic friction bearing for corrosive environments
- GN 509.11: Unique spring plunger design with integrated ball bearing, offering precise adjustment capabilities
Choosing the Right Ball Transfer Unit for Your Application
When selecting ball transfer units for packaging conveyor systems, consider these factors:
- Load capacity: Match the unit’s weight rating to your typical package weights
- Material compatibility: Choose stainless steel for food packaging or corrosive environments
- Mounting requirements: Select threaded, flanged, or press-fit options based on your conveyor design
- Environmental conditions: Consider temperature resistance and chemical compatibility
Installation and Optimization Tips
Proper ball transfer unit placement is crucial for optimal performance. The spacing between units should accommodate your smallest package size while providing adequate support. For packaging applications, units are typically arranged in a grid pattern with spacing determined by package dimensions and weight distribution.
Maintenance and Longevity
Ball transfer units require minimal maintenance when properly selected and installed. Regular cleaning to remove debris and occasional lubrication will ensure smooth operation and extend service life in demanding packaging environments.
Conclusion
Ball transfer units are essential components that enable efficient, flexible material handling in modern packaging and conveyor systems. The expanded Elesa+Ganter GN 509 series provides specialized solutions for diverse industrial applications, from lightweight package sorting to heavy-duty material transport. By selecting the appropriate ball transfer unit design for your specific needs, you can improve conveyor efficiency, reduce maintenance costs, and enhance overall system performance.
For detailed specifications and selection guidance, consult the Elesa+Ganter technical information sheet to optimize your ball transfer unit configuration for maximum efficiency, weblinks have been provided above.
